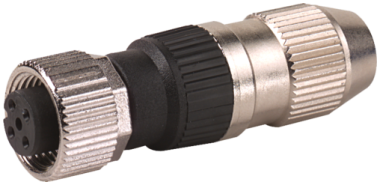

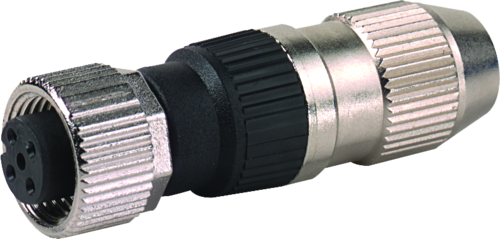

Murr IDC terminal, M12, female 0°, field-wireable, 4-pole

Product Overview

M12 female connector with field-wireable IDC termination. This connector is designed for fast and reliable signal wiring without the need for special tools. Its robust housing and compact form factor make it ideal for demanding industrial environments where secure, vibration-resistant connections are required.

Key Features

·        Field-wireable M12 female connector (IDC termination)

·        Fast assembly with insulation displacement technology (no soldering)

·        Rugged construction for industrial applications

·        Reliable electrical contact with vibration-resistant design

·        Compact housing suitable for space-constrained installations

Technical Specifications

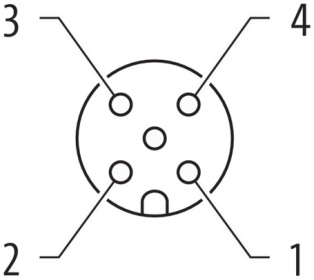

·        Connector Type: M12 female, 4-pole

·        Termination: IDC (Insulation Displacement Connection)

·        Housing Material: High-grade thermoplastic with metal locking nut

·        Contact Material: Copper alloy with gold plating

·        Protection Rating: IP67 when properly mated

·        Operating Temperature: −25 °C to +85 °C

·        Voltage Rating: 250 V AC/DC

·        Current Rating: Up to 4 A per contact

Applications

·        Industrial automation and control systems

·        Signal connections for sensors and actuators

·        Machine and process control panels

·        Robotics and field device wiring

·        On-site assembly where pre-molded cables are impractical

Installation Notes

·        Use IDC termination for fast, tool-free wiring

·        Ensure proper mating with compatible M12 male connectors

·        Confirm sealing requirements for IP67 protection

·        Observe correct wire size and placement during termination

Download existing graphical data for this product:

·        Product Datasheet
