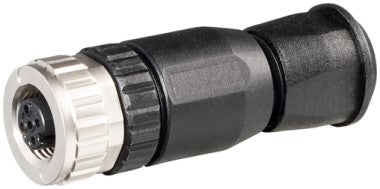

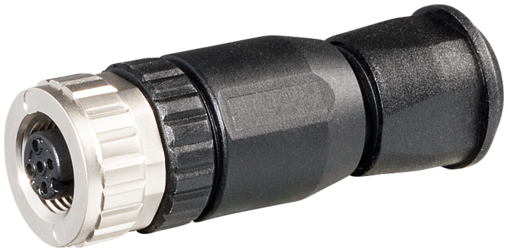

Murr Terminal, self-wireable, M12 female 0°, 5-pole, Ø2.5-8mm

Product Overview

The Murrelektronik M12 female straight field-wireable connector features enhanced screw terminal technology for industrial sensor and actuator systems requiring secure field termination with socket configuration. This A-coded connector accommodates 5-pole configurations with extended wire cross-sections from 0.14 to 1.5mm² and larger cable diameters from 2.5 to 8mm, providing robust socket connections in industrial automation environments where field assembly with heavier gauge wires is essential.

Key Features

• M12 female 0° straight connector with A-coding and 5-pole configuration
• Enhanced screw terminal technology for secure wire connections
• Extended wire cross-section compatibility: 0.14 to 1.5mm²
• Large cable diameter range: 2.5 to 8mm
• Screw terminals designed for reliable wire contact and retention with heavier conductors
• Robust strain relief system for enhanced cable protection
• Operating voltage suitable for industrial signal applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility
• IP67 protection rating when properly assembled

Technical Specifications

• Article Number: 7000-12931-0000000
• Connector Type: M12 female 0° straight, A-coded, field-wireable
• Pole Configuration: 5-pole
• Connection Method: Screw terminals
• Wire Cross-Section: 0.14 to 1.5mm²
• Cable Diameter: 2.5 to 8mm
• Operating Voltage: Industrial signal voltage range
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Field installation of sensor and actuator socket connections requiring 5-pole signal capacity with heavier conductors
• Industrial automation systems with enhanced control wiring requiring on-site female assembly
• Signal receiving applications where reliable field termination with larger wire sizes is essential
• Maintenance and repair applications requiring secure socket replacement with heavy-duty cables
• Control panel connections with multi-signal socket requirements using larger gauge wires
• Applications where pre-assembled female cordsets are impractical for heavy-duty wiring
• High-current measurement systems requiring reliable field socket connections
• Process control systems requiring dependable signal reception points with enhanced capacity

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with enhanced current capacity

Benefits

• Enhanced wire cross-section range accommodates conductors up to 1.5mm² for demanding applications
• Extended cable diameter range supports industrial cables up to 8mm
• 5-pole socket configuration provides comprehensive signal transmission capability
• Field-wireable configuration eliminates need for pre-assembled heavy-duty female cordsets
• A-coding ensures proper mating with compatible male connectors
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for heavy-duty field socket termination requirements
• Easy field installation with standard screw terminal connections
• Superior current handling capability for high-performance applications
• Versatile wire size accommodation from fine to heavy-duty conductors

Downloads:

• Product Data Sheet
