Murr Screw terminal, M8 female 0°, field-wireable, 4-pole

Product Overview

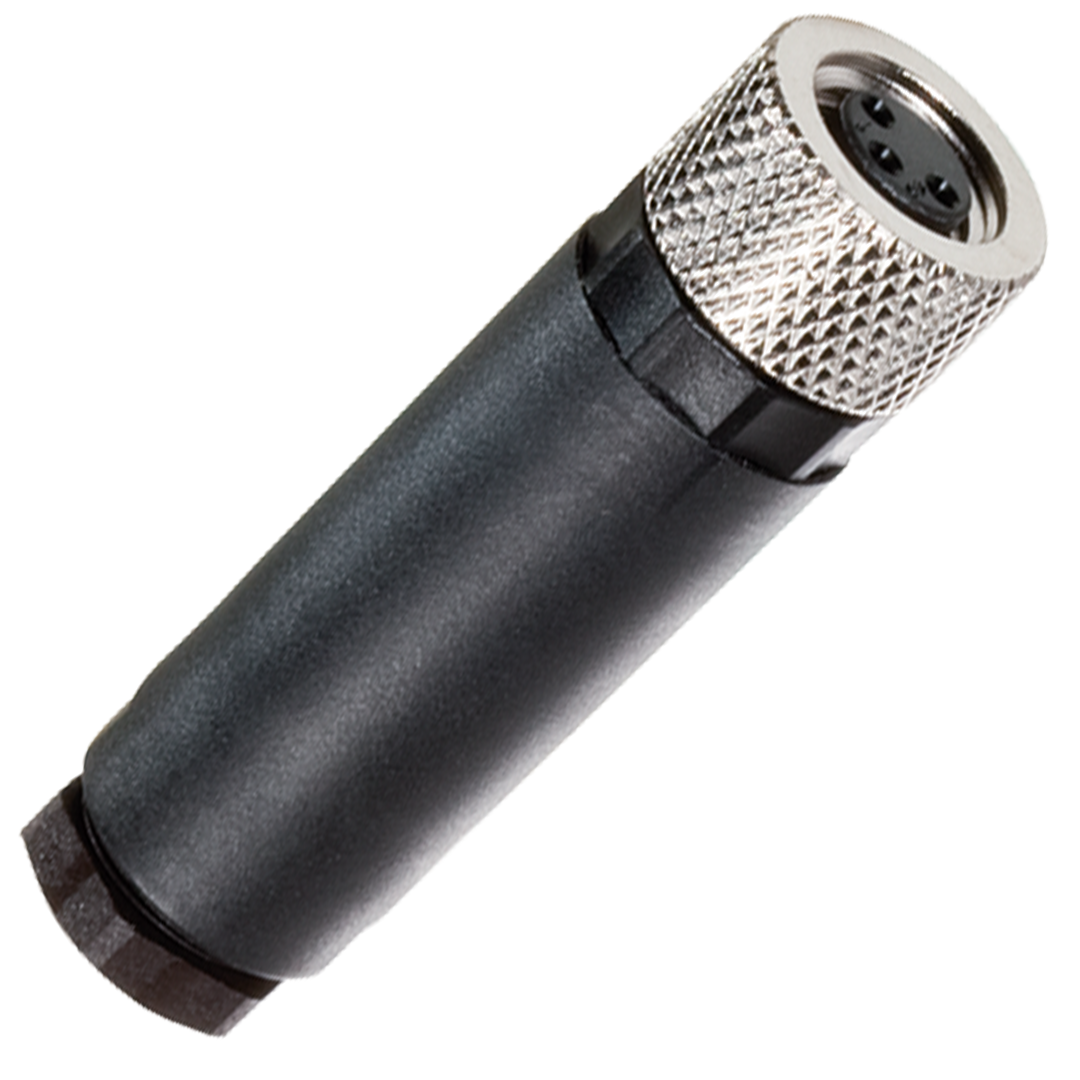

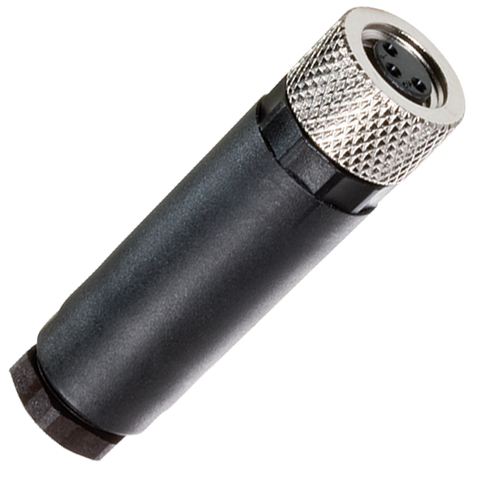

The Murrelektronik M8 female connector is a field-wireable connector designed for on-site termination using screw terminal technology. This straight M8 female connector features A-coding and 4-pole configuration with screw terminals, allowing for reliable field installation in industrial automation applications with wire cross-sections from 0.14 to 0.5mm².

Key Features

• M8 female straight connector with A-coding (4-pole configuration)
• Screw terminal technology for secure, removable connections
• Field-wireable design for on-site installation flexibility
• Accepts wire cross-sections from 0.14 to 0.5mm² (#26-20 AWG)
• Cable diameter range: 2.5 to 5mm
• IP67 protection rating for industrial environments

Technical Specifications

• Article Number: 7000-08631-0000000

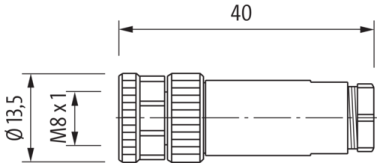

• Connector Type: M8 female, straight (0°)

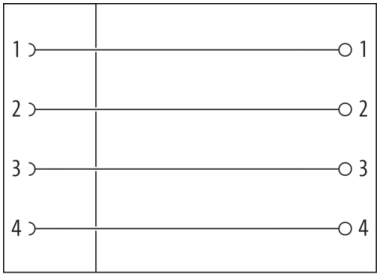

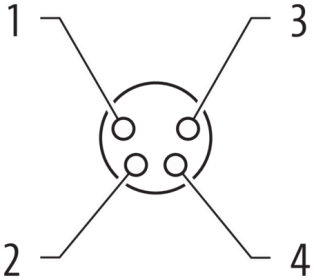

• Pole Configuration: 4-pole, A-coded
• Wire Cross Section: 0.14 to 0.5mm² (#26-20 AWG)
• Cable Diameter Range: 2.5 to 5mm
• Protection Rating: IP67
• Current Rating: 4A maximum per contact
• Voltage Rating: Industrial standard rating

Applications

• Field installation of 4-pole sensor connections
• Industrial automation systems requiring on-site termination
• Machine control systems with custom cable lengths
• Process control instrumentation requiring removable connections

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Protection Standards: IP67 environmental protection
• Industrial Standards: Suitable for demanding automation applications

Benefits

• Screw terminal technology allows for secure, removable connections
• Field-wireable design reduces pre-made cable inventory
• A-coding prevents mis-connection
• Wide wire cross-section range accommodates various cable types
• IP67 rating enables use in demanding environments
• 4-pole configuration supports complex sensor requirements

Download existing graphical data for this product:

• Data Sheet
