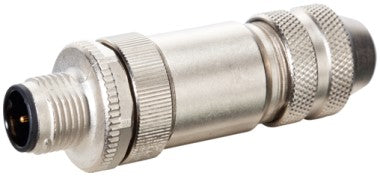

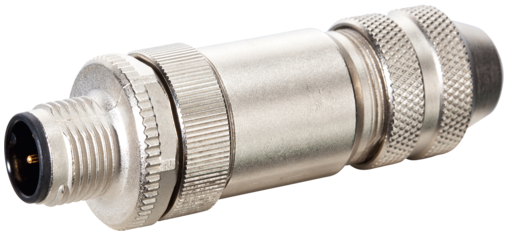

Murr Screw terminal, M12 male 0°, B-code, 5-pole

Product Overview

The Murrelektronik M12 male straight field-wireable connector features reliable shielded screw terminal technology specifically designed for industrial data communication applications requiring secure field termination with plug configuration. This B-coded connector accommodates 5-pole configurations with wire cross-sections up to 0.75mm² and cable diameters from 6 to 8mm, providing robust shielded plug connections in industrial automation environments where electromagnetic interference protection and data integrity are essential.

Key Features

• M12 male 0° straight connector with B-coding and 5-pole configuration
• Integrated shielding for superior electromagnetic interference protection
• Reliable screw terminal technology for secure wire connections
• Wire cross-section compatibility: up to 0.75mm²
• Cable diameter range: 6 to 8mm
• Screw terminals designed for reliable wire contact and retention
• Robust strain relief system for cable protection
• Operating voltage suitable for industrial data applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility

Technical Specifications

• Article Number: 7000-14001-0000000
• Connector Type: M12 male 0° straight, B-coded, field-wireable

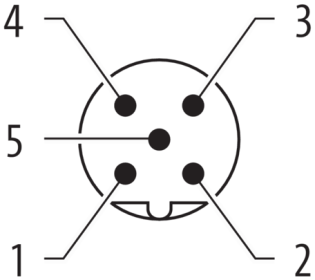

• Pole Configuration: 5-pole
• Connection Method: Screw terminals with integrated shielding
• Wire Cross-Section: Maximum 0.75mm²
• Cable Diameter: 6 to 8mm
• Shielding: Integrated electromagnetic interference protection
• Operating Voltage: Industrial data communication voltage range
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Industrial data communication networks requiring EMI protection
• Field installation of data transmission plug connections with shielding requirements
• Process control systems requiring reliable shielded data connections
• Manufacturing automation systems with electromagnetic interference concerns
• Control panel connections requiring data integrity and noise immunity
• Applications where pre-assembled shielded cordsets are impractical
• Industrial network connections requiring field-installed shielded plugs
• Data transmission systems in electrically noisy environments

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• EMI Standards: Integrated shielding for electromagnetic compatibility
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial data communication conditions

Benefits

• B-coded design ensures proper compatibility with industrial data communication systems
• Integrated shielding provides superior EMI protection for data signal integrity
• 5-pole configuration supports comprehensive data transmission requirements
• Enhanced cable diameter range accommodates larger industrial data cables up to 8mm
• Field-wireable configuration eliminates need for pre-assembled shielded cordsets
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for shielded field plug termination requirements
• Easy field installation with standard screw terminal connections
• Superior data transmission performance in electrically noisy environments
• Reliable long-term performance for critical data communication applications

Downloads:

• Product Data Sheet
