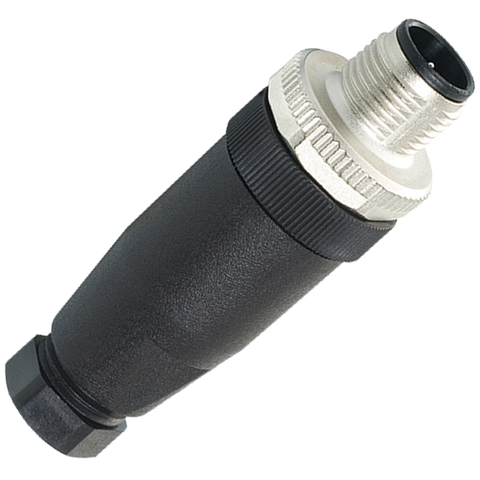

Murr Screw terminal, M12 male 0°, 5-pole, cable Ø 4-6mm

Product Overview

The Murrelektronik M12 male straight field-wireable connector features reliable screw terminal technology for industrial sensor and actuator systems requiring secure field termination with plug configuration. This A-coded connector accommodates 5-pole configurations with wire cross-sections up to 0.75mm² and cable diameters from 4 to 6mm, providing dependable plug connections in industrial automation environments where field assembly is critical.

Key Features

• M12 male 0° straight connector with A-coding and 5-pole configuration
• Screw terminal technology for secure wire connections
• Wire cross-section compatibility: up to 0.75mm²
• Cable diameter range: 4 to 6mm
• Screw terminals designed for reliable wire contact and retention
• Robust strain relief system for cable protection
• Operating voltage up to 60V for signal applications
• Durable plastic housing with superior resistance properties

Technical Specifications

• Article Number: 7000-12721-0000000
• Connector Type: M12 male 0° straight, A-coded, field-wireable
• Pole Configuration: 5-pole
• Connection Method: Screw terminals
• Wire Cross-Section: Maximum 0.75mm²
• Cable Diameter: 4 to 6mm
• Operating Voltage: 60V
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent durability

Applications

• Field installation of sensor and actuator plug connections requiring 5-pole signal capacity
• Industrial automation systems with control wiring requiring on-site male assembly
• Signal transmission applications where reliable field termination is essential
• Maintenance and repair applications requiring secure plug replacement
• Control panel connections with multi-signal plug requirements
• Applications where pre-assembled cordsets are impractical
• Measurement systems requiring reliable field plug connections

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions

Benefits

• Screw terminal design ensures secure, long-lasting electrical connections
• Field-wireable configuration eliminates need for pre-assembled cordsets
• 5-pole plug configuration provides comprehensive signal transmission capability
• Optimized cable diameter range accommodates standard industrial cables
• Robust construction withstands demanding industrial environments
• A-coding ensures proper mating with compatible female connectors
• Cost-effective solution for field termination requirements
• Excellent resistance against chemicals, oils, and environmental contaminants
• Reliable performance in automation and control applications
