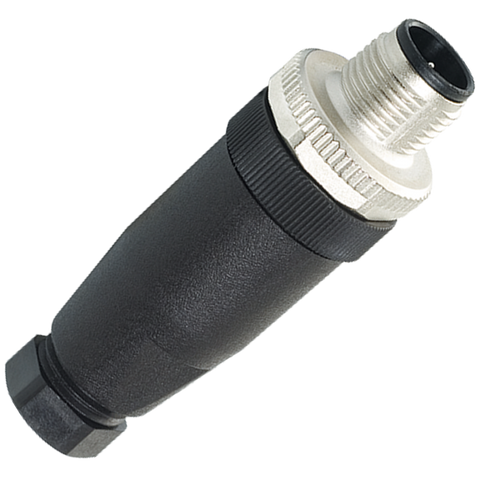

Murr Screw terminal, M12 male 0°, 4-pole, cable Ø 6-8mm

Product Overview

The Murrelektronik M12 male straight field-wireable connector features reliable screw terminal technology for industrial sensor and actuator systems requiring secure field termination with plug configuration. This A-coded connector accommodates 4-pole configurations with wire cross-sections up to 0.75mm² and larger cable diameters from 6 to 8mm, providing robust plug connections in industrial automation environments where field assembly with medium to heavy gauge wires is essential.

Key Features

• M12 male 0° straight connector with A-coding and 4-pole configuration
• Reliable screw terminal technology for secure wire connections
• Wire cross-section compatibility: up to 0.75mm²
• Large cable diameter range: 6 to 8mm
• Screw terminals designed for reliable wire contact and retention
• Robust strain relief system for cable protection
• Maximum current rating of 4A per contact
• Operating voltage up to 250V for signal applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility

Technical Specifications

• Article Number: 7000-12741-0000000
• Connector Type: M12 male 0° straight, A-coded, field-wireable
• Pole Configuration: 4-pole
• Connection Method: Screw terminals
• Wire Cross-Section: Maximum 0.75mm²
• Cable Diameter: 6 to 8mm
• Operating Voltage: Up to 250V
• Maximum Current: 4A per contact
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Field installation of sensor and actuator plug connections requiring 4-pole signal capacity
• Industrial automation systems with medium to heavy control wiring requiring on-site male assembly
• Signal transmission applications where reliable field termination with larger cable sizes is essential
• Maintenance and repair applications requiring secure plug replacement
• Control panel connections with multi-signal plug requirements using larger gauge cables
• Applications where pre-assembled cordsets are impractical for medium-duty wiring
• Process control systems requiring reliable field plug connections
• Harsh industrial environments requiring robust cable connections with chemical resistance

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with enhanced current capacity

Benefits

• 4-pole configuration optimized for standard industrial signal applications
• Enhanced cable diameter range accommodates larger industrial cables up to 8mm
• High current capacity of 4A per contact for demanding applications
• Field-wireable configuration eliminates need for pre-assembled cordsets
• A-coding ensures proper mating with compatible female connectors
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• Cost-effective solution for medium-duty field termination requirements
• Reliable performance in automation and control applications
• Easy field installation with standard screw terminal connections

Product Datasheet:

• Data Sheet
