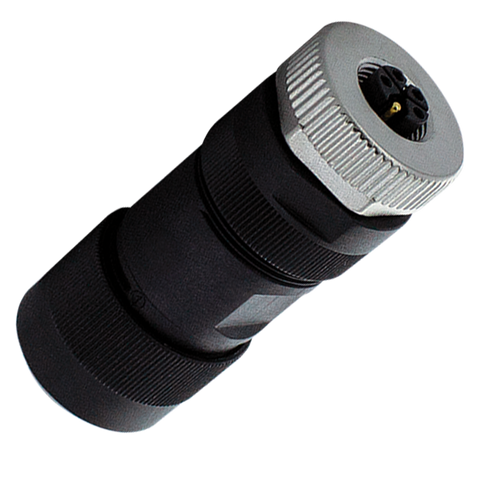

Murr Screw terminal, M12 female 0°, L-coded, 5-pole

Product Overview

M12 Power female field-wireable connector (SKU: 7000-P4611-0000000) designed for high-current power applications requiring on-site cable termination. This L-coded 5-pole straight connector features screw terminal connections accommodating up to 2.5mm² conductors with 8-13mm cable sealing range for custom power installations in industrial automation systems.

Key Features

• M12 Power female straight (0°) L-coded connector
• Field-wireable screw terminal design for custom installations
• 5-pole configuration accepting up to 2.5mm² conductors
• Cable sealing range: 8-13mm diameter accommodation
• Gold-plated contacts for superior conductivity and corrosion resistance
• IP67/IP68/IP69K protection when properly assembled
• Chemical and oil resistant plastic housing
• Professional field installation without specialized tools

Technical Specifications

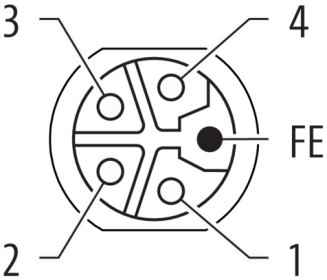

• Connector Type: M12 Power female straight (0°) L-coded, 5-pole
• Termination: Screw terminals
• Wire Capacity: Maximum 2.5mm² per terminal
• Cable Sealing Range: 8-13mm diameter
• Operating Voltage: Up to 1000V AC, 63V DC max
• Current Rating: 12A max per contact
• Operating Temperature: -30°C to +85°C
• Protection Rating: IP67/IP68/IP69K (when properly assembled)

Applications

• Custom power cable assemblies requiring field termination
• Equipment power connections with non-standard cable lengths
• Retrofit installations where pre-made cables are unsuitable
• Control panel power connections requiring on-site wiring
• Maintenance and repair applications needing connector replacement
• Custom automation projects with specific cable requirements

Compliance & Standards

• IEC 61076-2-111 standard compliant L-coding
• Field-wireable design for professional installations
• Chemical and oil resistant construction
• RoHS compliant materials
