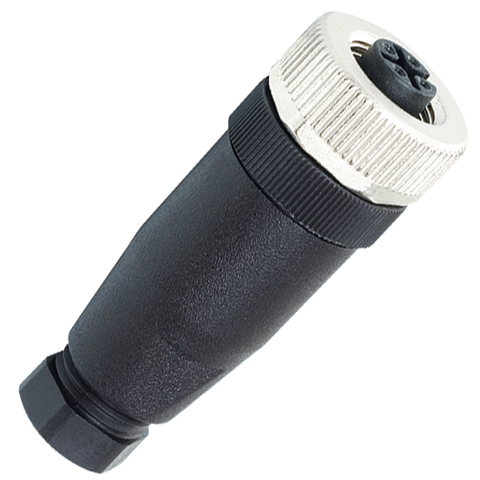

Murr Screw terminal, M12 female 0°, 8-pole, cable Ø 6-8mm

Product Overview

The Murrelektronik M12 female straight field-wireable connector is designed for on-site cable termination in industrial automation applications. This A-coded connector features an 8-pole screw terminal configuration, allowing flexible field installation with user-supplied cables ranging from 6-8mm diameter, providing reliable connectivity for signal transmission applications requiring female socket connections.

Key Features

• M12 female straight connector with A-coding for standardized pin assignment
• Field-wireable design with screw terminal connections for on-site installation
• 8-pole configuration supporting wire cross-sections up to 0.5mm²
• Cable diameter acceptance range of 6-8mm for flexible cable selection
• Plastic housing construction with excellent chemical and oil resistance
• IP67 protection rating when properly installed and mated
• Female socket design for connecting to male M12 connectors
• User-configurable cable length based on application requirements

Technical Specifications

• Article Number: 7000-17321-0000000
• Connector Type: M12 female straight (0°), A-coded, field-wireable

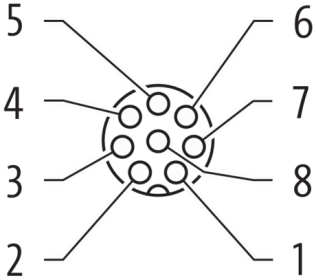

• Number of Poles: 8-pole configuration
• Wire Cross-Section: Maximum 0.5mm² per conductor
• Cable Diameter Range: 6-8mm sealing range
• Connection Method: Screw terminal connections
• Protection Rating: IP67 when properly installed and mated
• Housing Material: Plastic with chemical and oil resistance
• Lock Mechanism: Standard M12 coupling mechanism
• Voltage Rating: Standard industrial signal voltages

Applications

• Custom cable length actuator and device connections requiring female termination
• Industrial automation systems with standard M12 A-coded interfaces
• Machine control applications requiring on-site female connector assembly
• Retrofit installations where pre-assembled female cables are not suitable
• Process control equipment requiring specific cable routing with female connections
• Maintenance and repair applications requiring field-serviceable female connections
• Custom automation solutions requiring female socket connections with non-standard cable requirements

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Environmental Protection: IP67 rating for industrial environments
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction
• Coding Standard: A-coded for standardized pin assignment compatibility

Benefits

• Field-wireable design reduces inventory requirements for multiple cable lengths
• Female socket configuration provides secure mating with male M12 connectors
• Screw terminal connections ensure reliable, serviceable connections
• Flexible cable diameter range accommodates various cable types
• On-site termination capability reduces installation time and complexity
• Plastic housing provides good resistance against chemicals and oils
• Resistance to aggressive media should be individually tested for specific applications
• Cost-effective solution for custom cable length requirements with female termination
• Environmentally conscious material selection

Downloads

• Product Data Sheet
