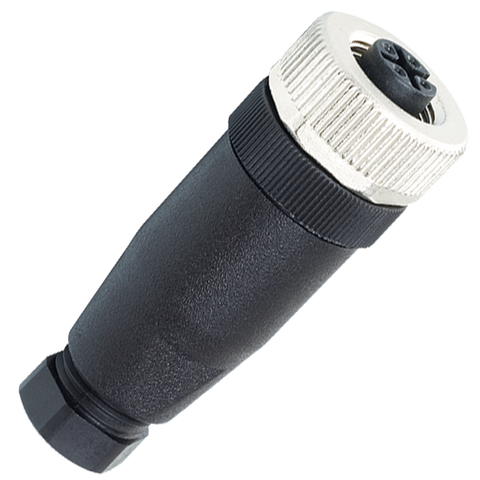

Murr Screw terminal, M12 female 0°, 4-pole, cable Ø 4-6mm

Product Overview

The Murrelektronik M12 female straight field-wireable connector features reliable screw terminal technology for industrial sensor and actuator systems requiring secure field termination with socket configuration. This A-coded connector accommodates 4-pole configurations with wire cross-sections up to 0.75mm² and cable diameters from 4 to 6mm, providing dependable socket connections in industrial automation environments where field assembly is critical.

Key Features

• M12 female 0° straight connector with A-coding and 4-pole configuration
• Reliable screw terminal technology for secure wire connections
• Wire cross-section compatibility: up to 0.75mm²
• Cable diameter range: 4 to 6mm
• Screw terminals designed for reliable wire contact and retention
• Robust strain relief system for cable protection
• IP67 protection rating when properly assembled
• Operating voltage suitable for industrial signal applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility

Technical Specifications

• Article Number: 7000-12901-0000000
• Connector Type: M12 female 0° straight, A-coded, field-wireable

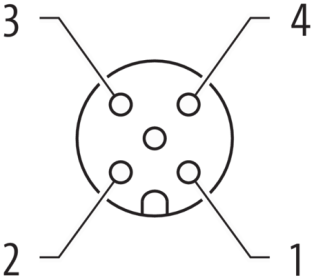

• Pole Configuration: 4-pole
• Connection Method: Screw terminals
• Wire Cross-Section: Maximum 0.75mm²
• Cable Diameter: 4 to 6mm
• Operating Voltage: Industrial signal voltage range
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Field installation of sensor and actuator socket connections requiring 4-pole signal capacity
• Industrial automation systems with control wiring requiring on-site female assembly
• Signal receiving applications where reliable field termination is essential
• Maintenance and repair applications requiring secure socket replacement
• Control panel connections with multi-signal socket requirements
• Applications where pre-assembled female cordsets are impractical
• Measurement systems requiring reliable field socket connections
• Process control systems requiring dependable signal reception points

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions

Benefits

• 4-pole socket configuration optimized for standard industrial signal applications
• Field-wireable configuration eliminates need for pre-assembled female cordsets
• A-coding ensures proper mating with compatible male connectors
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for field socket termination requirements
• Easy field installation with standard screw terminal connections
• Reliable performance in automation and control applications
• Optimal cable diameter range accommodates standard industrial cables

Downloads:

• Product Data Sheet
