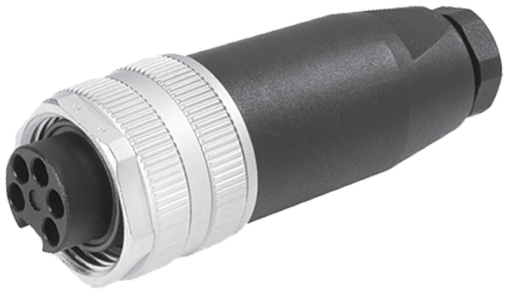

Murr Screw terminal, 7/8'' female 0°, field wireable, 5-pole

Product Overview

7/8" (Mini) female field-wireable connector (SKU: 7000-78201-0000000) with screw terminal configuration for power applications. This 5-pole connector enables on-site installation for I/O modules and field device power connections requiring an additional ground or signal wire in industrial automation systems.

Key Features

• 7/8" (Mini) female straight connector with screw terminals
• 5-pole configuration for power applications with ground/signal
• Field-wireable design for on-site installation
• Screw terminal connection - no special tools required
• Plastic housing with chemical and oil resistance
• Wire capacity: max. 1.5mm²
• Cable diameter: 6-8mm
• IP67 protection rating when mated

Technical Specifications

• Connector: 7/8" (Mini) female straight (0°)
• Pole Count: 5-pole
• Termination: Screw terminals
• Wire Capacity: max. 1.5mm²
• Cable Diameter: 6-8mm
• Housing Material: Industrial-grade plastic
• Protection Rating: IP67 when properly mated

Applications

• I/O module power connections with ground
• Field device power supply with signal wire
• Industrial automation power distribution
• Sensor and actuator power connections requiring additional conductor
• Machine control power circuits with safety ground

Compliance & Standards

• Industrial grade construction
• Chemical and oil resistant housing
• IP67 environmental protection
