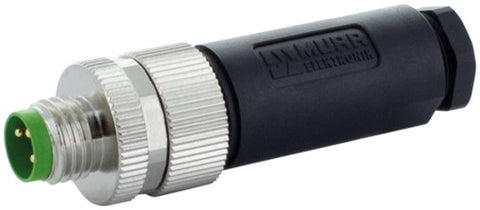

Murr M8 Screw terminal, male 0°, 3-pole, c/s 0.14 - 0.5mm²
Murr M8 Screw terminal, male 0°, 3-pole, c/s 0.14 - 0.5mm²

Murr M8 Screw terminal, male 0°, 3-pole, c/s 0.14 - 0.5mm²

Cable termination is easier than ever with the unique designs from Murrelektronik. Whether you choose Insulation Displacement Connectors or screw terminal terminations their products help to reduce your wiring efforts. Field-wireable connectors are offered as Soldering connection, screw-clamp or Insulation Displacement Connectors (IDC). There is the further option of straight...
Vendor: Murrelektronik
SKU: 7000-08601-0000000
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
Cable termination is easier than ever with the unique designs from Murrelektronik. Whether you choose Insulation Displacement Connectors or screw terminal terminations their products help to reduce your wiring efforts. Field-wireable connectors are offered as Soldering connection, screw-clamp or Insulation Displacement Connectors (IDC). There is the further option of straight or angled, shielded or unshielded and is easily matched to sensor and actuator cables.
Specifications
Specifications
x
IP RatingIP67
Tariff85366990
GTIN4048879224536
Temperature: Operating / Dynamic-25°C to 85°C
Material: Housing / GripPBT
Material: Sensing Surface / ContactsBrass / Gold-plated
Material: Contact CarrierPA 66
Conductor Cross-section0.14 ... 0,5mm²
Connection TypeMale / straight / M8 / 3 Pole
Connection StyleScrew Terminals SK
Operating Voltage 50 VAC / 60 VDC
Current Rating / Rated Current4 A
Documents
Documents
x
Download Datasheet
