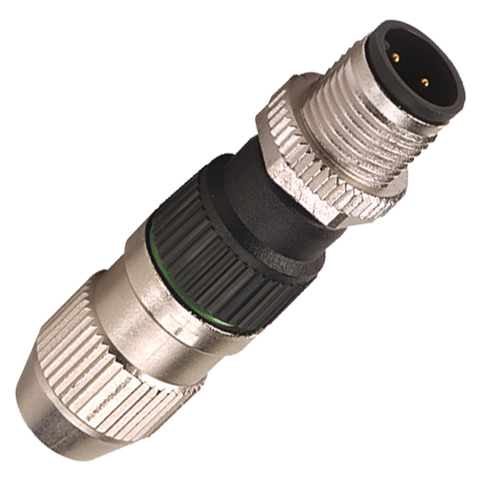

Murr M12 Connector, male 0°, 3-pole, 0.25 - 0.5mm²

Product Overview

The Murrelektronik M12 male straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology for industrial sensor and actuator applications requiring fast, reliable field termination without traditional tools. This A-coded connector accommodates 3-pole configurations with wire cross-sections from 0.25 to 0.5mm² and cable diameters from 4 to 5.1mm, providing quick and secure connections in industrial automation environments where field assembly is critical.

Key Features

• M12 male 0° straight connector with A-coding and 3-pole configuration
• IDC (Insulation Displacement Connector) technology for tool-free field termination
• Wire cross-section compatibility: 0.25 to 0.5mm²
• Cable diameter range: 4 to 5.1mm
• Razor-style connection blades for secure wire contact
• Hand-tightened strain relief requiring minimal force
• IP67 protection rating for harsh industrial environments
• Plastic housing with good chemical and oil resistance

Technical Specifications

• Article Number: 7000-12461-0000000

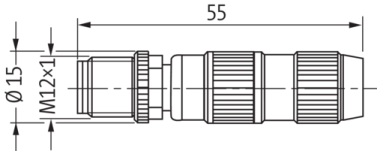

• Connector Type: M12 male 0° straight, A-coded, field-wireable

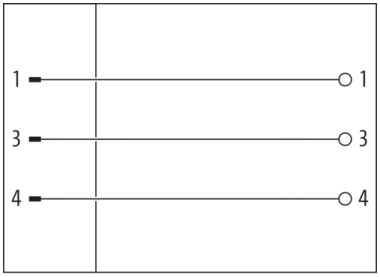

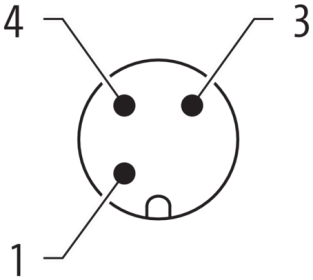

• Pole Configuration: 3-pole
• Connection Method: IDC (Insulation Displacement Connector)
• Wire Cross-Section: 0.25 to 0.5mm²
• Cable Diameter: 4 to 5.1mm
• Termination Technology: Razor-style contact blades
• Protection Rating: IP67 when properly assembled
• Housing Material: Plastic with chemical and oil resistance

Applications

• Field installation of sensor and actuator connections requiring rapid termination
• Industrial automation systems where on-site cable assembly is necessary
• Maintenance and repair applications requiring quick connector replacement
• Mobile equipment and temporary installations requiring field-assembled connections
• Applications where traditional screw terminal installation is impractical
• Remote locations where specialized termination tools are not available

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions

Benefits

• IDC technology reduces installation time by over 50% compared to traditional screw terminals
• No specialized tools required - hand-tightened strain relief installation
• Razor-style blades ensure reliable electrical contact without wire stripping
• Minimal force required for assembly - comparable to tightening a bottle cap
• Field-wireable design eliminates need for pre-assembled cordsets in many applications
• IP67 protection suitable for demanding industrial environments
• Robust plastic housing withstands exposure to chemicals and oils
• Cost-effective solution for field termination requirements

Download existing graphical data for this product:

• Data Sheet
