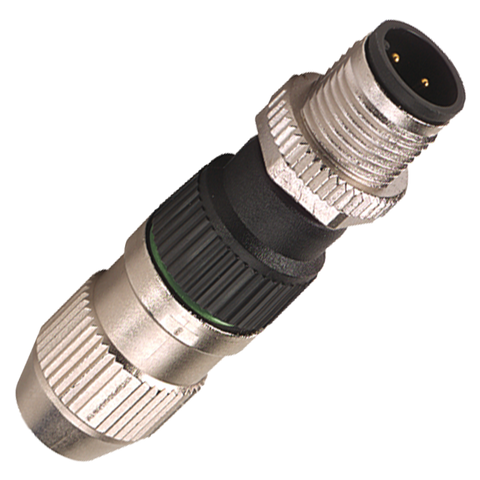

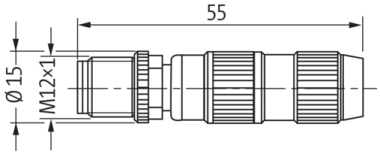

Murr IDC terminal, M12 male 0°, 4-pole, c/s 0.25-0.5mm²

Product Overview

The Murrelektronik M12 male straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology for industrial sensor and actuator applications requiring fast, reliable field termination with expanded signal capacity. This A-coded connector accommodates 4-pole configurations with wire cross-sections from 0.25 to 0.5mm² and cable diameters from 4 to 5.1mm, providing quick and secure connections in industrial automation environments where field assembly with multiple signals is critical.

Key Features

• M12 male 0° straight connector with A-coding and 4-pole configuration
• IDC (Insulation Displacement Connector) technology for tool-free field termination
• Wire cross-section compatibility: 0.25 to 0.5mm²
• Cable diameter range: 4 to 5.1mm
• Razor-style connection blades for secure wire contact
• Hand-tightened strain relief requiring minimal force
• IP67 protection rating for harsh industrial environments

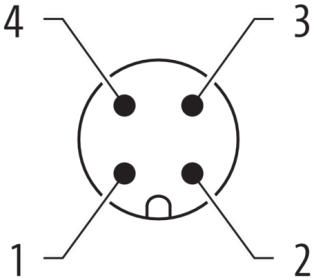

• Keyed and color-coded alignment insert for proper pin alignment

Technical Specifications

• Article Number: 7000-12481-0000000
• Connector Type: M12 male 0° straight, A-coded, field-wireable

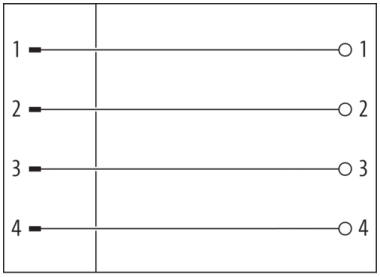

• Pole Configuration: 4-pole
• Connection Method: IDC (Insulation Displacement Connector)
• Wire Cross-Section: 0.25 to 0.5mm² (conductor diameter min. 0.1mm)
• Cable Diameter: 4 to 5.1mm
• Operating Voltage: Maximum 32V AC/DC
• Current Rating: Maximum 4A per contact
• Operating Temperature: -25°C to +85°C
• Protection Rating: IP65/IP67 when properly assembled
• Housing Material: Impact-resistant plastic with chemical and oil resistance

Applications

• Field installation of sensor and actuator connections requiring 4-pole signal capacity
• Industrial automation systems where on-site cable assembly with multiple signals is necessary
• Maintenance and repair applications requiring quick 4-pole connector replacement
• Mobile equipment and temporary installations requiring field-assembled multi-signal connections
• Applications where traditional screw terminal installation with multiple wires is impractical
• Remote locations where specialized termination tools for multi-pole connections are not available

Standards and Compliance

• Protection Standards: IP65/IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Material Standards: IEC 60664-1, Category III
• Performance Standards: Designed for harsh industrial conditions

Benefits

• IDC technology reduces installation time by over 50% compared to traditional screw terminals
• No specialized tools required - hand-tightened strain relief installation
• Razor-style blades ensure reliable electrical contact without wire stripping
• Minimal force required for assembly - comparable to tightening a bottle cap
• 4-pole configuration supports expanded signal requirements in field applications
• Keyed alignment system prevents incorrect wiring during field assembly
• Field-wireable design eliminates need for pre-assembled cordsets in many applications
• Extremely good resistance against chemicals, oils, lubricants, and coolants
• Impact-resistant plastic housing withstands demanding industrial environments
• Cost-effective solution for multi-pole field termination requirements

Download existing graphical data for this product:

• Data Sheet
