Murr IDC terminal, M12 female 90°, 4-pole, c/s 0.25-0.5mm²

Product Overview

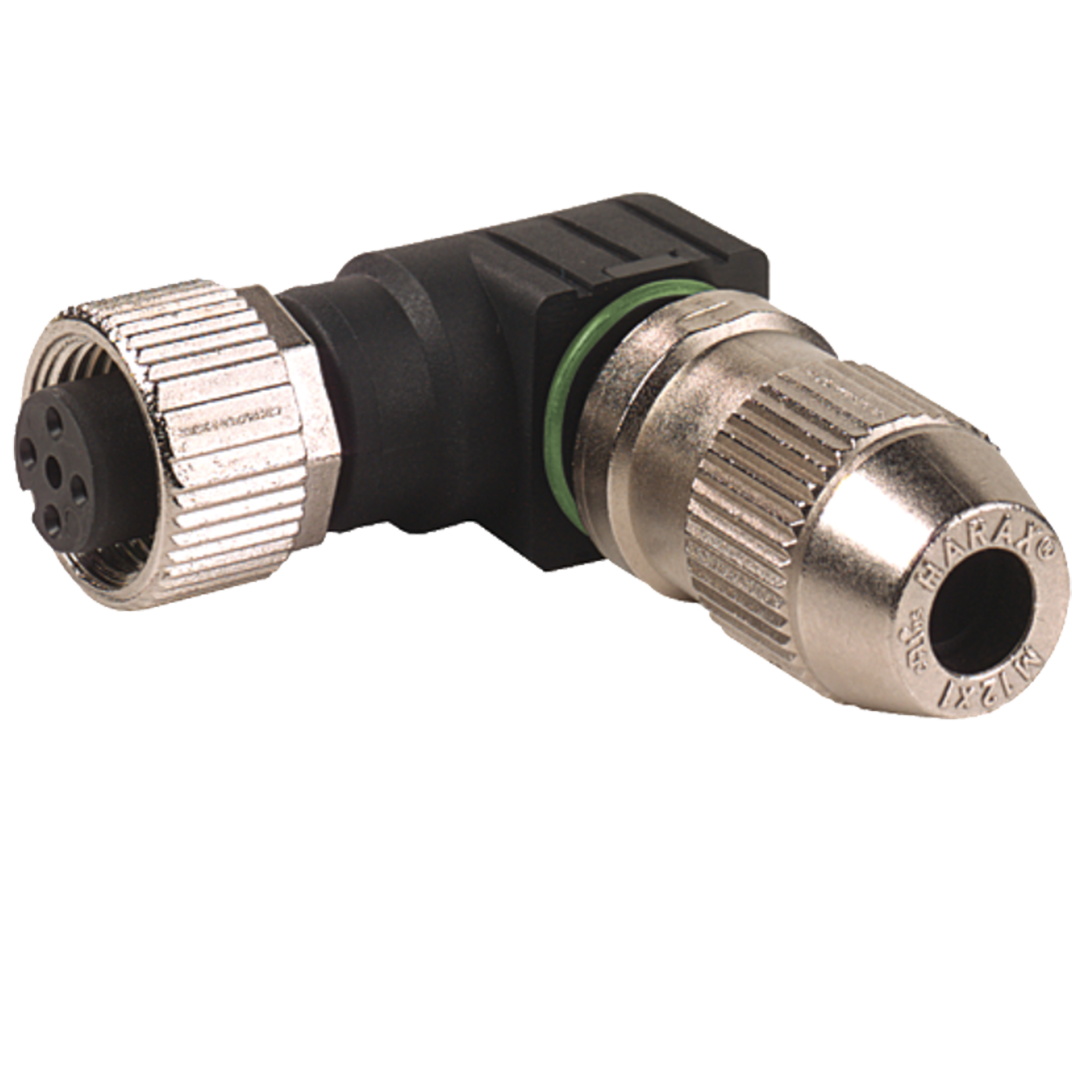

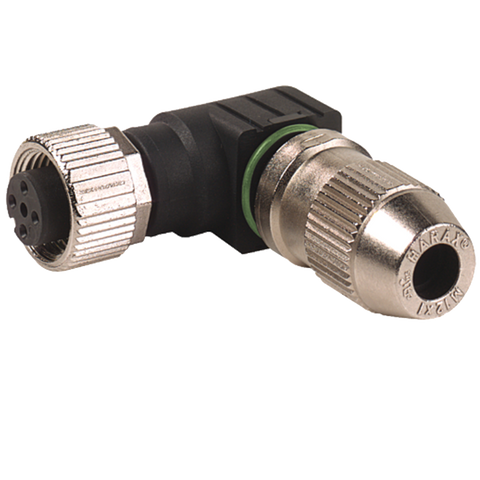

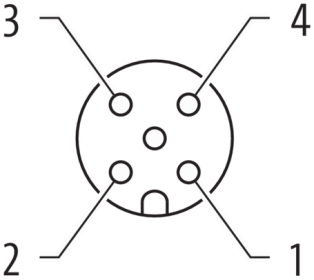

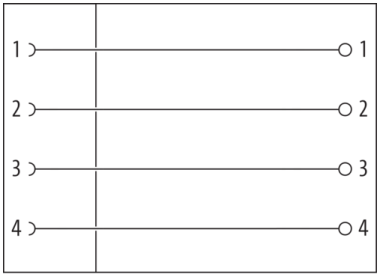

The Murrelektronik M12 female 90° angled field-wireable connector features innovative IDC (Insulation Displacement Connector) technology for industrial sensor and actuator applications requiring space-saving design with expanded signal capacity and socket configuration. This A-coded connector accommodates 4-pole configurations with wire cross-sections from 0.25 to 0.5mm² and cable diameters from 4 to 5.1mm, providing quick and secure angled socket connections in industrial automation environments where field assembly with multiple signals is critical.

Key Features

• M12 female 90° angled connector with A-coding and 4-pole configuration
• IDC technology for tool-free field termination with space-saving design
• Wire cross-section compatibility: 0.25 to 0.5mm²
• Cable diameter range: 4 to 5.1mm
• Razor-style connection blades for secure wire contact
• Hand-tightened strain relief requiring minimal force
• IP67 protection rating for harsh industrial environments

Technical Specifications

• Article Number: 7000-12681-0000000
• Connector Type: M12 female 90° angled, A-coded, field-wireable
• Pole Configuration: 4-pole
• Connection Method: IDC (Insulation Displacement Connector)
• Wire Cross-Section: 0.25 to 0.5mm²
• Cable Diameter: 4 to 5.1mm
• Operating Voltage: Maximum 32V AC/DC
• Current Rating: Maximum 4A per contact
• Operating Temperature: -25°C to +85°C
• Protection Rating: IP67 when properly assembled

Applications

• Space-constrained sensor and actuator socket connections requiring 4-pole signal capacity
• Panel-mounted equipment requiring right-angle socket connectivity with multiple signal lines
• Machine control applications with visual diagnostic requirements and expanded socket I/O
• Process control applications with limited clearance and multi-signal socket requirements
• Factory automation systems requiring angled socket connections with 4-wire capacity

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions

Benefits

• IDC technology reduces installation time by over 50% compared to traditional terminations
• 90° angled design saves space and prevents cable interference
• No specialized tools required - hand-tightened strain relief installation
• 4-pole socket configuration supports expanded signal requirements
• Field-wireable design eliminates need for pre-assembled multi-pole socket cordsets
• Extremely good resistance against chemicals, oils, lubricants, and coolants

Download existing graphical data for this product:

• Data Sheet
