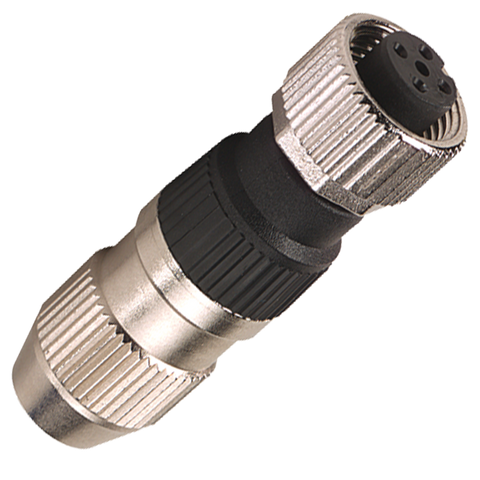

Murr IDC terminal, M12 female 0°, 4-pole, c/s 0.25-0.5mm²

Product Overview

The Murrelektronik M12 female straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology for industrial sensor and actuator applications requiring fast, reliable field termination with expanded signal capacity and socket configuration. This A-coded connector accommodates 4-pole configurations with wire cross-sections from 0.25 to 0.5mm² and cable diameters from 4 to 5.1mm, providing quick and secure socket connections in industrial automation environments where field assembly with multiple signals is critical.

Key Features

• M12 female 0° straight connector with A-coding and 4-pole configuration
• IDC (Insulation Displacement Connector) technology for tool-free field termination
• Wire cross-section compatibility: 0.25 to 0.5mm²
• Cable diameter range: 4 to 5.1mm
• Razor-style connection blades for secure wire contact
• Hand-tightened strain relief requiring minimal force
• IP65/IP67 protection rating for harsh industrial environments
• Impact-resistant plastic housing with superior chemical resistance

Technical Specifications

• Article Number: 7000-12601-0000000
• Connector Type: M12 female 0° straight, A-coded, field-wireable
• Pole Configuration: 4-pole
• Connection Method: IDC (Insulation Displacement Connector)
• Wire Cross-Section: 0.25 to 0.5mm²
• Cable Diameter: 4 to 5.1mm
• Operating Voltage: Maximum 32V AC/DC
• Current Rating: Maximum 4A per contact
• Operating Temperature: -25°C to +85°C
• Protection Rating: IP65/IP67 when properly assembled
• Housing Material: Impact-resistant plastic with excellent chemical resistance

Applications

• Field installation of sensor and actuator socket connections requiring 4-pole signal capacity
• Industrial automation systems where on-site female connector assembly with multiple signals is necessary
• Maintenance and repair applications requiring quick 4-pole socket replacement
• Mobile equipment and temporary installations requiring field-assembled multi-signal socket connections
• Panel-mounted applications requiring field-wireable female connectors with expanded I/O
• Applications where traditional screw terminal socket installation with multiple wires is impractical
• Remote locations where specialized termination tools for multi-pole socket connections are not available

Standards and Compliance

• Protection Standards: IP65/IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with socket reliability

Benefits

• IDC technology reduces installation time by over 50% compared to traditional socket terminations
• No specialized tools required - hand-tightened strain relief installation
• Razor-style blades ensure reliable electrical contact without wire stripping
• Minimal force required for assembly - comparable to tightening a bottle cap
• 4-pole socket configuration supports expanded signal requirements in field applications
• Female design provides secure mating with male connectors in field installations
• Field-wireable design eliminates need for pre-assembled socket cordsets in many applications
• Extremely good resistance against chemicals, oils, lubricants, and coolants
• Impact-resistant plastic housing withstands demanding industrial environments
• Cost-effective solution for multi-pole socket field termination requirements

Download existing graphical data for this product:

• Data Sheet
