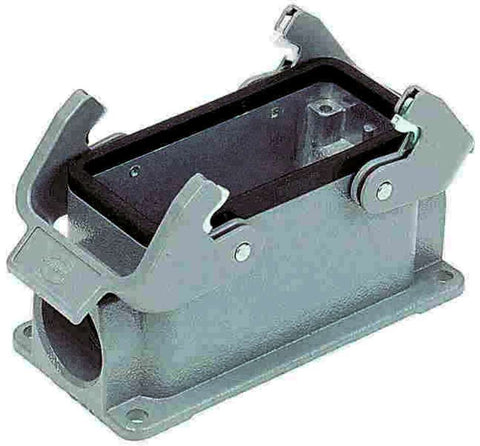

Harting Surface mounted housing, double locking, side entry, 2x M20

Product Overview

The Han B Base Surface LC 2 Levers 2xM20 is a low construction connector base for industrial surface mounting applications requiring maximum connection security and dual cable capacity. Features aluminum die-cast construction with dual locking levers and dual M20 cable glands combining enhanced reliability with increased cable management flexibility in critical installations.

Key Features

• Low construction (LC) design for minimal height profile
• Surface mounting with dual locking levers for maximum security
• Size 10B with dual M20 side cable entries
• Aluminum die-cast construction, RAL 7037 finish
• Dual lever system with dual cable management capability
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 10B
• Construction: Low construction (LC)
• Cable Entry: Side entry, 2 x M20
• Locking System: Dual levers for maximum security
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• Low construction minimizes vertical space requirements
• Dual lever system provides enhanced locking force and security
• Dual M20 cable glands for increased cable management flexibility
• Compatible with Han 10B series hoods and inserts

Applications

• Critical applications requiring maximum connection security with dual cables
• Vibration-prone environments needing dual lever reliability and dual cable routing
• Safety-critical systems where both connection integrity and cable redundancy are essential
• Industrial installations requiring low profile with enhanced security and dual cable capacity

Compatibility

• Compatible with Han 10B series hoods and inserts
• Part of Han B® connector system
• Low construction with dual lever security and dual cable management

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: ≥500 mating cycles with dual lever security

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
