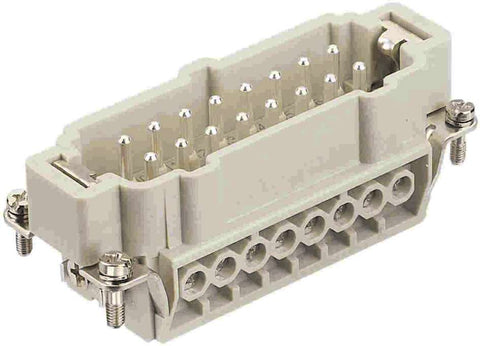

Harting Insert, screw, male, size 16B, c/s 0.75 - 2.5mm² Part number 09330162601

Product Overview

The Han E 16 Position Male Insert with screw termination is a robust industrial connector insert designed for heavy-duty power applications. This insert features 16 contacts plus PE (protective earth) connection and is engineered for reliable electrical connections in demanding industrial environments. The insert utilizes screw termination technology for secure wire connections and is compatible with Size 16B hoods and housings.

Key Features

• 16 positions plus PE contact for comprehensive connectivity
• Screw termination method for secure and reliable wire connections
• Male gender configuration with numbered contacts (1-16)
• Wire protection integrated into design
• Silver-plated copper alloy contacts for optimal conductivity
• Pebble grey (RAL 7032) polycarbonate housing
• Mechanical working life of ≥500 mating cycles

Technical Specifications

• Current Rating: 16A
• Rated Voltage: 500V (600V UL/CSA)
• Rated Impulse Voltage: 6kV
• Conductor Cross-Section: 0.75 - 2.5 mm²
• Wire Size: AWG 18 - AWG 14
• Contact Resistance: ≤1 mΩ
• Insulation Resistance: >10¹⁰ Ω
• Temperature Range: -40°C to +125°C
• Pollution Degree: 3
• Stripping Length: 7.5mm
• Housing Material: Polycarbonate (PC)
• Contact Material: Copper alloy with silver plating
• Flammability Rating: UL 94 V-0
• Net Weight: 80g

Installation Details

• Contact Screw: M3 (0.5 Nm tightening torque)
• Fixing Screws: M3 (0.5 Nm tightening torque)
• PE Screw: M4 (1.2 Nm tightening torque)
• Recommended Screwdrivers:
  • Slotted 0.6 x 3.5
  • Slotted 0.8 x 4.5
  • Phillips PH1 and PH2

Applications

Ideal for industrial connectivity applications including:

• Factory automation systems
• Industrial machinery and equipment
• Rail technology installations
• Protected electrical areas requiring removable connections
• Control cabinet wiring
• Power distribution systems

Compatibility

• Compatible with Size 16B hoods and housings
• Works with all Han® B series housings
• Can be used for rack and panel mounting applications
• Compatible with corresponding Han E female inserts for complete connectivity solutions

Certifications and Compliance

• Standards: IEC 60664-1, IEC 61984
• UL Certification: UL 1977 (ECBT2.E235076), UL 2237 (PVVA2.E318390)
• CSA Certification: CSA-C22.2 No. 182.3 (PVVA8.E318390)
• DNV GL Approved
• RoHS: Compliant with exemption (6c - Copper alloy containing up to 4% lead)
• ELV Status: Compliant with exemption
• China RoHS: Grade 50
• REACH Compliance: SVHC substances present (Lead)
• ECHA SCIP Number: 5dbb3851-b94e-4e88-97a1-571845975242
• Fire Protection: EN 45545-2 (2020-08) compliant for railway vehicles

Environmental Compliance Notes

• Contains lead as part of copper alloy composition
• California Proposition 65: Contains lead and nickel
• REACH SVHC substance declaration available
• Meets railway vehicle fire protection standards R22 and R23 (HL 1-3)
