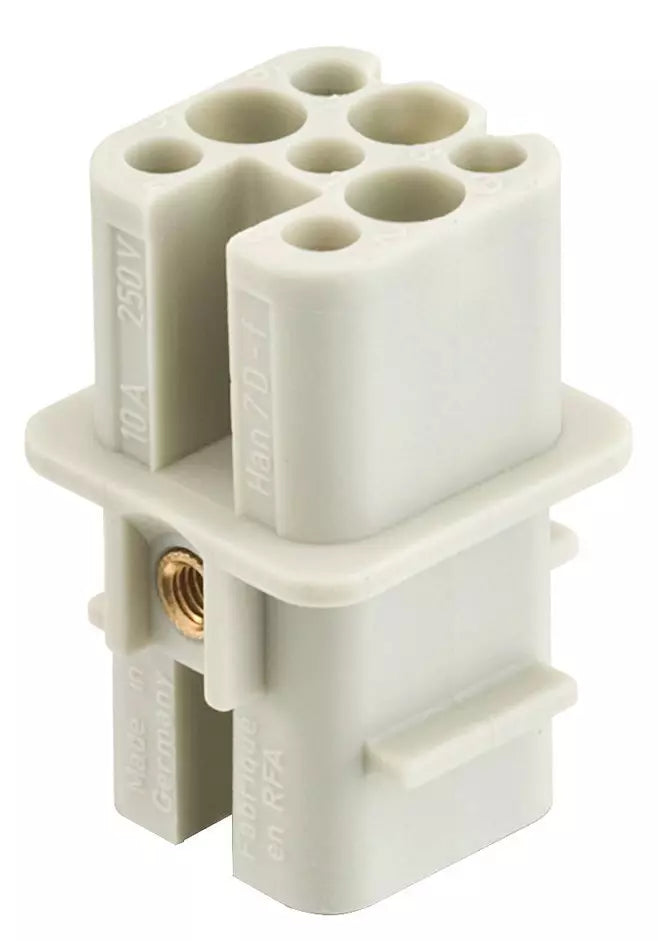

Harting Insert, crimp, female, size 3A, c/s 0.14 - 2.5mm²

Product Overview

Heavy-duty female insert (SKU: 09210073131) designed for Han D® connector systems. This 7-position insert (plus protective earth) features crimp termination and is made of durable polyamide (PA) in pebble grey (RAL 7032). Rated for 10 A current capacity and size 3 A format, it supports conductor cross-sections from 0.14 to 2.5 mm²—ideal for robust industrial applications.

Key Features

• Female insert with 7 signal positions plus PE contact
• Crimp termination method for secure connections
• 10 A current rating, suitable for robust power/signal interfaces
• Size: Han D® 3 A format
• Made from polyamide (PA), RAL 7032 (pebble grey), offering high industrial durability
• Conductor cross-section compatibility: 0.14–2.5 mm²
• PE (earth) contact included; crimp contacts must be ordered separately
• Intended for use in thermoplastic hoods/housings only

Technical Specifications

• Connector Type: Female insert, Han D® series, 7-pos + PE
• Termination Method: Crimp
• Current Rating: 10 A
• Conductor Cross-Section: 0.14–2.5 mm²
• Housing Material: Polyamide (PA), RAL 7032
• Size: 3 A
• Ground Contact: Yes (PE)

Applications

• Industrial machine electrical connections requiring crimp terminations
• Power distribution and signal integration in control cabinets
• Han D® modular connector assemblies in heavy-duty environments
• Any industrial-grade application demanding durability and modularity

Compliance & Standards

• Designed for reliable performance in Han D® connector systems
• Engineered to meet international industrial standards for heavy-duty inserts
• Compatible with thermoplastic housings and genuine Harting components

Download existing graphical data for this product:

• Product Datasheet
