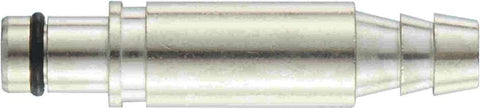

Harting Pneumatic contact w/out shutoff, straight, male.

Product Overview

The pneumatic contact metal ID 6 male is a high-performance Han-Modular® pneumatic male contact designed for demanding compressed air transmission applications requiring superior durability and enhanced operating pressure. This precision-engineered metal contact features a 6mm tube internal diameter with robust brass construction and is optimized for industrial pneumatic systems requiring reliable air flow control, extended service life, and superior mechanical retention in high-cycle applications.

Key Features

• Series: Han-Modular® Pneumatic Metal
• Gender: Male
• Tube Inner Diameter: 6.0 mm
• Shut-off Function: Without shut-off
• Contact Material: Brass (Metal)
• Seal Material: High-grade elastomer
• Maximum Operating Pressure: ≤10 bar (enhanced pressure rating)
• Operating Temperature: -40°C to +80°C
• Manufacturing Process: Precision machined metal
• Configuration: Straight
• Mating Cycles: ≥10,000 cycles (enhanced durability)
• Module Compatibility: Han® Pneumatic Module Metal (2-pole for 6mm contacts)
• Application: Clean and dry air transmission with high-cycle operation
• Certifications: UL/CSA approved

Technical Specifications

This male pneumatic contact is part of the Han-Modular® Pneumatic Module Metal system, featuring precision-machined brass construction for secure and reliable pneumatic connections with enhanced durability and pressure capability. The contact accommodates 6mm internal diameter tubing and operates at pressures up to 10 bar, providing 25% higher pressure rating compared to standard plastic contacts. The robust brass construction with high-grade elastomer seal provides exceptional chemical resistance and mechanical durability for long-term reliability in demanding applications. Engineered to withstand at least 10,000 mating cycles, this contact maintains consistent performance in high-frequency connection/disconnection applications. The straight configuration without shut-off function allows continuous air flow when connected, with the male contact designed to interface with corresponding female contacts in the metal pneumatic system. The new contact mounting design allows for easy contact removal and replacement when needed.

Compliance & Environmental

• UL/CSA certified for industrial applications
• RoHS compliant construction
• ELV status compliant
• China RoHS e compliant
• REACH compliant materials
• Wide operating temperature range: -40°C to +80°C
• Enhanced operating pressure: 10 bar (vs. 8 bar for plastic variants)
• Industrial-grade brass construction
• Suitable for clean and dry air applications
• High-cycle durability: ≥10,000 mating cycles

Applications

Ideal for industrial automation, flexible production systems, and compressed air distribution applications requiring reliable male pneumatic connections with extended service life and enhanced pressure capability. Perfect for manufacturing equipment with frequent mating/unmating cycles, automated assembly lines, robotic systems, and control systems where male connection points, high-cycle durability, and superior pressure handling are essential. The 6mm tube diameter with metal construction makes it suitable for demanding applications including flexible production lines, high-frequency pneumatic operations, heavy-duty manufacturing equipment, and process automation where enhanced durability, higher operating pressure, and reliable modular connectivity are critical for operational efficiency and long-term performance in challenging industrial environments.
