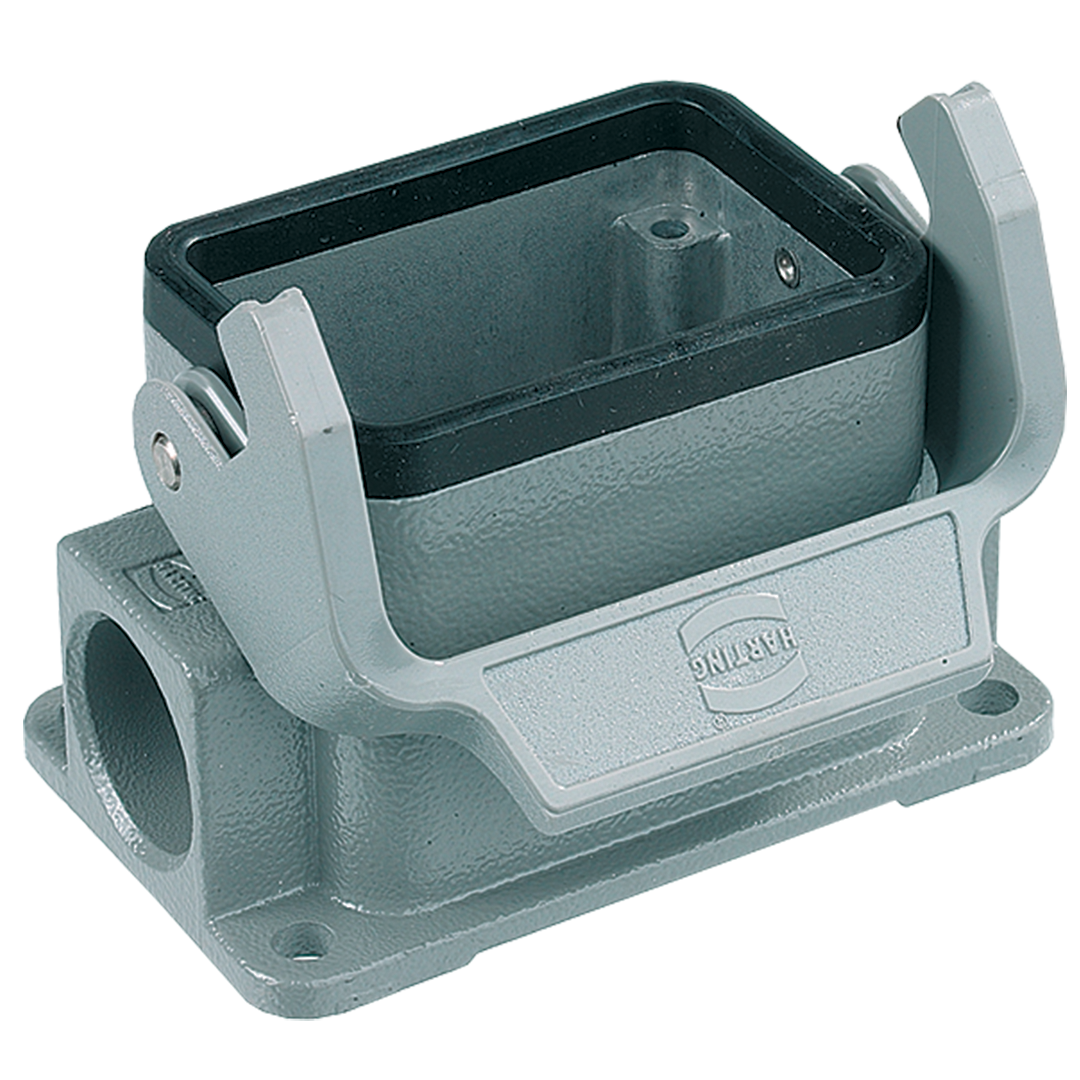

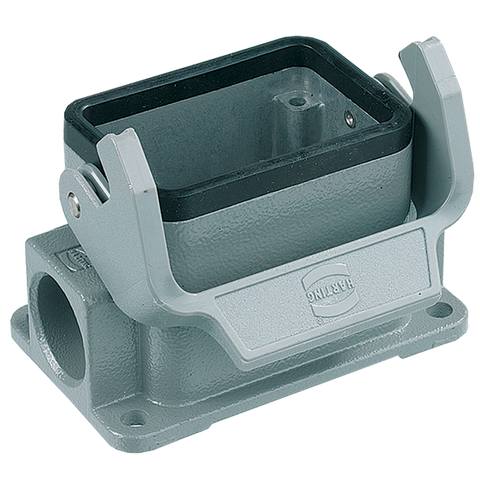

Harting Surface housing, single locking, side entry, size 6B

Product Overview

Article No.: 19 30 006 1250

The Han 6 B-Base Surface-LC with single lever is a robust industrial connector base designed for surface mounting applications. This low construction connector base is part of HARTING's renowned Han® B series, engineered to deliver reliable performance in demanding industrial environments with IP65 protection rating.

Key Features:

• Surface Mount Design: Low construction profile optimized for surface mounting applications with side entry configuration
• Single Locking Lever: Han-Easy Lock® system with single lever operation for secure and convenient mating/unmating
• Cable Entry: 1 x M20 cable gland for secure cable termination
• Material Construction: Aluminum die-cast housing with dust gray powder coating (RAL 7037)
• Sealing System: NBR seal technology providing excellent environmental protection
• Size Configuration: Size 6B with compact dimensions for space-efficient installations
• Durable Components: Polycarbonate and stainless steel locking mechanisms for enhanced durability

Technical Specifications:

• Operating Temperature: -40°C to +125°C (for use as connector according to IEC 61984)
• Protection Rating: IP65 according to IEC 60529
• Type Rating: NEMA 4, 4X, 12 according to UL 50/UL 50E
• Mating Cycles: ≥500 cycles
• Flammability Rating: V-0 according to UL 94 (locking levers)
• Series: Han® B
• Category: Hoods/Housings
• Type: Surface mounted housing, low construction
• Version: Side entry with single cable entry
• Net Weight: 1g
• Country of Origin: Germany

Material Properties:

• Housing: Aluminum die-cast with powder-coated finish
• Color: RAL 7037 (dust gray)
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Locking Material: Polycarbonate (PC) and stainless steel
• Locking Color: RAL 7037 (dust gray)

Compliance & Certifications:

• RoHS Compliant: Yes
• ELV Status: Compliant
• China RoHS: e
• UL/CSA Approvals: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
• CE Marking: Yes
• DNV GL Approved: Yes
• Fire Protection: EN 45545-2 (2020-08) with Hazard Levels R22 (HL 1-3), R23 (HL 1-3)
• REACH Compliant: Annex XVII and XIV substances not contained
• GTIN: 5713140125124

Applications:

Ideal for industrial automation, machinery, and equipment applications requiring reliable electrical connections in harsh environments. Suitable for use in railway vehicles and stationary railway technology applications. Compatible with Han 6 B inserts and hoods for complete connector assembly.

Field of Application:

Standard hoods/housings for industrial connectors in demanding environments where reliable performance and environmental protection are critical.
