Harting Surface housing, single locking, side entry, PG16

Product Overview

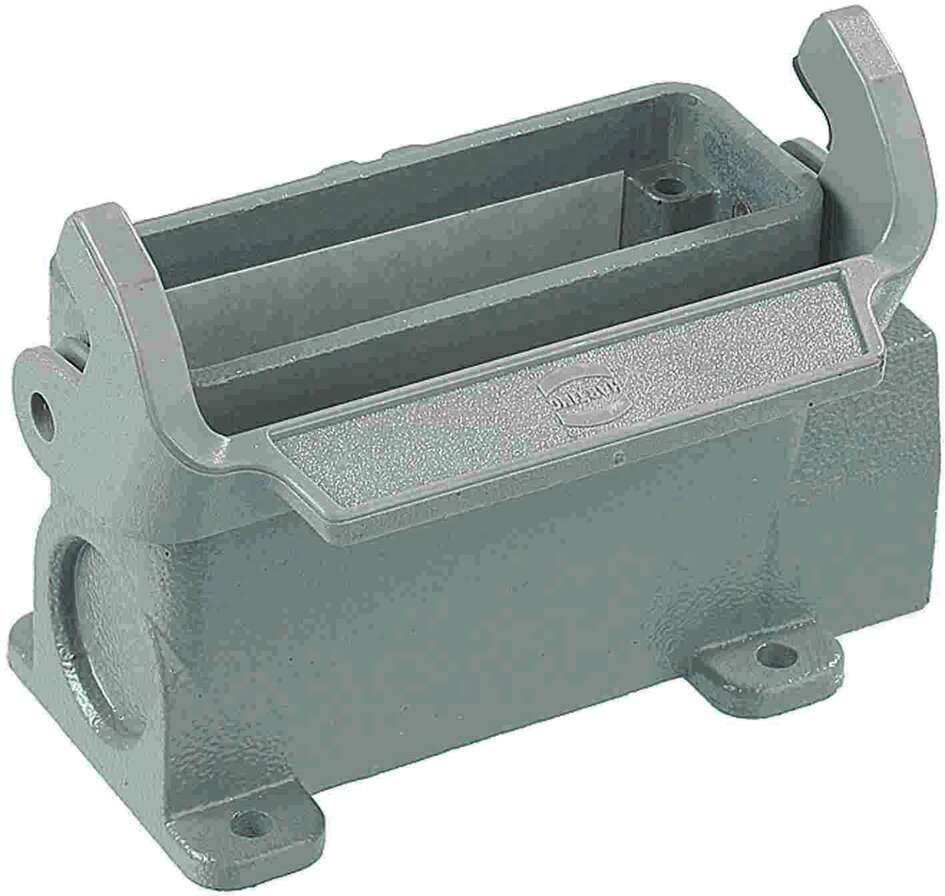

The Han 16 A-asg1-LB-16 (Article No.: 09 20 016 0251) is a surface mounted housing from HARTING's Han A® series featuring high construction design with single locking lever. This size 16A housing provides side entry cable access through PG16 cable gland for industrial connector applications.

Key Features:

• Han A® series surface mounted housing, size 16A
• High construction design with single locking lever
• Side entry (lateral) configuration with 1x PG16 cable gland
• Aluminium die-cast construction with powder coating
• Polycarbonate and stainless steel components
• IP65 protection rating for industrial environments

Technical Specifications:

• Article Number: 09 20 016 0251
• Category: Hoods/Housings
• Series: Han A®, Size 16A
• Type: Surface mounted housing
• Construction: High construction
• Locking: Single locking lever
• Entry Configuration: Side entry (lateral cable outlet)
• Cable Entry: 1x PG16
• Clamping Range: 8.0 - 14.0 mm
• Material: Aluminium die-cast (housing), Polycarbonate (PC), Stainless steel
• Finish: Powder-coated
• Color: RAL 7037 (dust grey)
• Protection Rating: IP65
• Operating Temperature: -40°C to +125°C

Applications: Designed for demanding industrial applications requiring robust surface mounting solutions for Han A® connector systems. Ideal for automation equipment, industrial machinery, process control applications, and environments where side cable entry and high construction provide optimal connectivity and protection.

Benefits:

• Surface mounting design allows flexible installation options on panels and equipment
• High construction provides enhanced durability for demanding applications
• Side entry configuration facilitates convenient lateral cable routing
• Single locking lever provides secure and easy connection/disconnection
• Aluminium die-cast construction ensures excellent durability and corrosion resistance
• IP65 protection rating ensures reliability in harsh industrial environments
• Wide operating temperature range (-40°C to +125°C) suitable for extreme conditions
• Compatible with Han A® and D series 16A inserts for flexible system integration

Compatibility: Compatible with Han A® and D series inserts. These housings work with appropriate inserts to provide comprehensive connectivity solutions for industrial applications requiring 16A current ratings.
