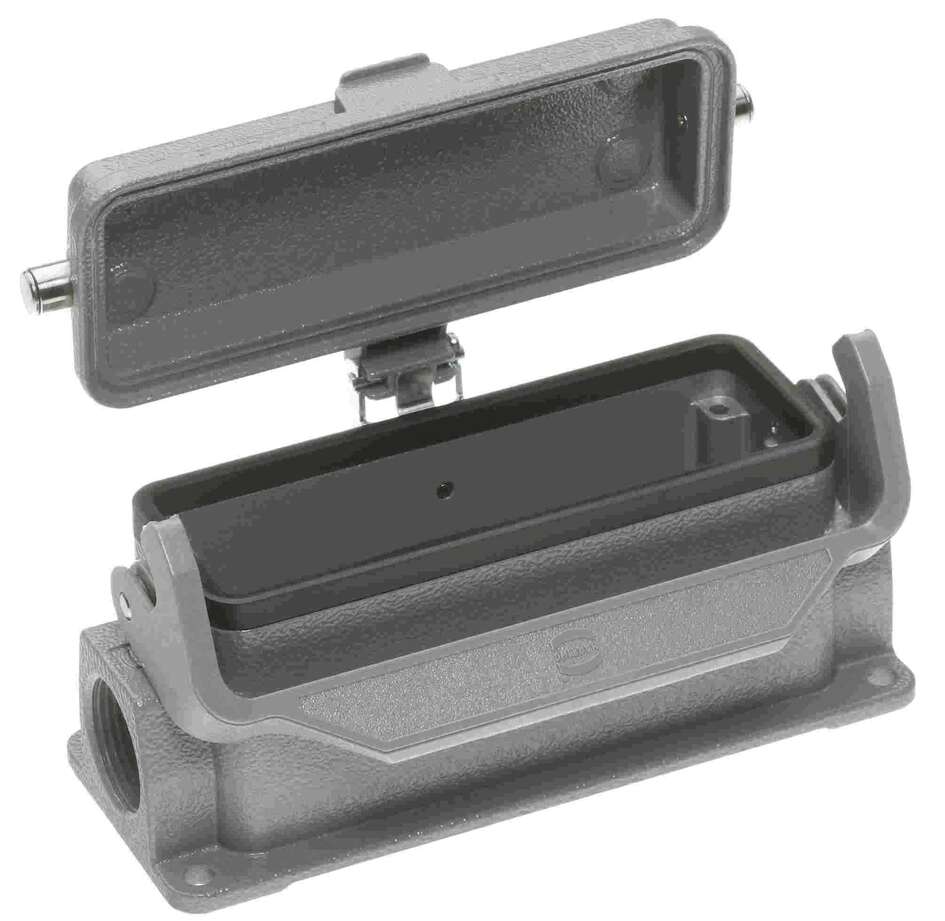

Harting Surface housing, single locking, side entry, 2x M25, size 24B

Product Overview

The Han B Base SM LC Metal Cover 2xM25 is a surface-mounted connector base housing with protective metal cover for industrial applications requiring secure mounting with dual cable entries. Features aluminum die-cast construction with single locking lever mechanism and metal cover protection with dual M25 side cable entries for reliable electrical connections in demanding industrial environments.

Key Features

• Surface-mounted (SM) base housing with metal cover protection
• Low construction (LC) design with single locking lever
• Size 24B with dual M25 side cable entries
• Aluminum die-cast construction, RAL 7037 finish
• Protective metal cover for enhanced durability
• IP65 protection, suitable for industrial environments

Technical Specifications

• Housing Size: 24B
• Construction: Surface Mount (SM) with Low Construction (LC)
• Cable Entry: Side entry, 2 x M25
• Locking System: Single locking lever (PC/stainless steel)
• Temperature Range: -40°C to +125°C
• Protection: IP65, UL 50/UL 50E type rating
• Material: Aluminum die-cast, powder-coated RAL 7037
• Cover: Metal cover for enhanced protection
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• Surface mounting configuration for panel and enclosure installation
• Metal cover provides additional protection against mechanical damage
• Single locking lever system provides secure mechanical connection
• Dual M25 entries accommodate multiple cable applications

Applications

• Industrial automation and control systems requiring surface-mounted bases
• Applications needing enhanced protection with metal cover
• Control cabinets and enclosures with dual cable requirements
• Harsh environments requiring additional mechanical protection

Compatibility

• Compatible with Han 24B series inserts and contacts
• Part of Han B® connector system
• Surface mounted base with metal cover protection

Environmental Protection

• Protection: IP65 rating against dust and water ingress
• Construction: Corrosion-resistant aluminum die-cast housing
• Metal Cover: Enhanced protection against mechanical damage
• Sealing: NBR seal material for environmental protection
• Temperature: -40°C to +125°C operational range

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076
• Flammability: V-0 according to UL 94 (locking levers)
• Origin: Germany
