Harting Surface housing, single locking, side entry, 1x M25, size 10A

Product Overview

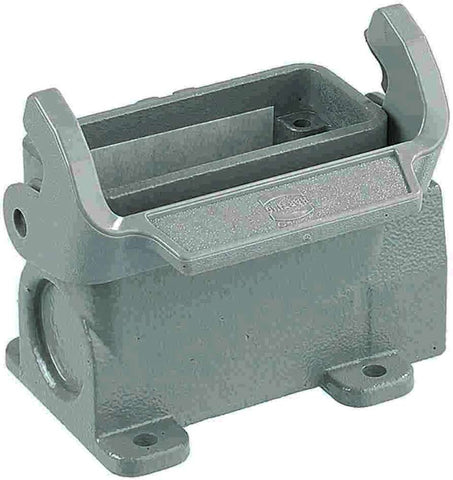

The Han 10A-HSM-HC 1 Lever 1xM25 is a high construction surface mounted housing designed for demanding industrial applications requiring enhanced cable capacity. Features aluminum die-cast construction with single locking lever mechanism and M25 cable entry. Part of the Han A® series with size 10A configuration, specifically engineered as a high construction (HC) housing to provide increased internal volume and superior cable management capabilities.

Key Features

• High construction design for enhanced cable capacity
• Single locking lever for secure engagement
• Size 10A with M25 cable entry
• Aluminum die-cast construction for durability
• Surface mounted configuration
• Temperature range: -40°C to +125°C
• IP65 protection rating
• Enhanced internal volume for larger cable assemblies

Technical Specifications

• Housing Size: 10A
• Construction: High construction (HC)
• Mounting: Surface mounted housing (HSM)
• Cable Entry: 1x M25
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast construction
• Protection: IP65 protection rating
• UL Rating: Industrial standard compliance
• Locking: Single locking lever
• Series: Han A®
• Standards: IEC 61984, IEC 60529

Installation Details

• Surface mounted design for panel installation
• High construction provides increased internal space
• M25 cable entry accommodates larger diameter cables
• Single lever provides secure engagement and easy operation
• Compatible with Han 10A insert configurations

Applications

• Industrial machinery requiring larger cable capacity
• Control systems with high cable density requirements
• Automation equipment needing enhanced cable management
• Manufacturing systems with multiple cable assemblies
• Heavy-duty applications requiring robust connector solutions
• Applications where increased internal volume is essential

Compatibility

• Compatible with Han 10A series inserts
• Works with various Han A® insert configurations
• Part of comprehensive Han A® connector system
• Suitable for applications requiring enhanced cable capacity
• Compatible with standard Han A® mounting systems

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: High-strength construction for industrial environments

Certifications and Compliance

• Standards: IEC 61984, IEC 60529
• Environmental: RoHS compliant
• Origin: Germany
• Quality: HARTING manufacturing standards
