xProduct Overview

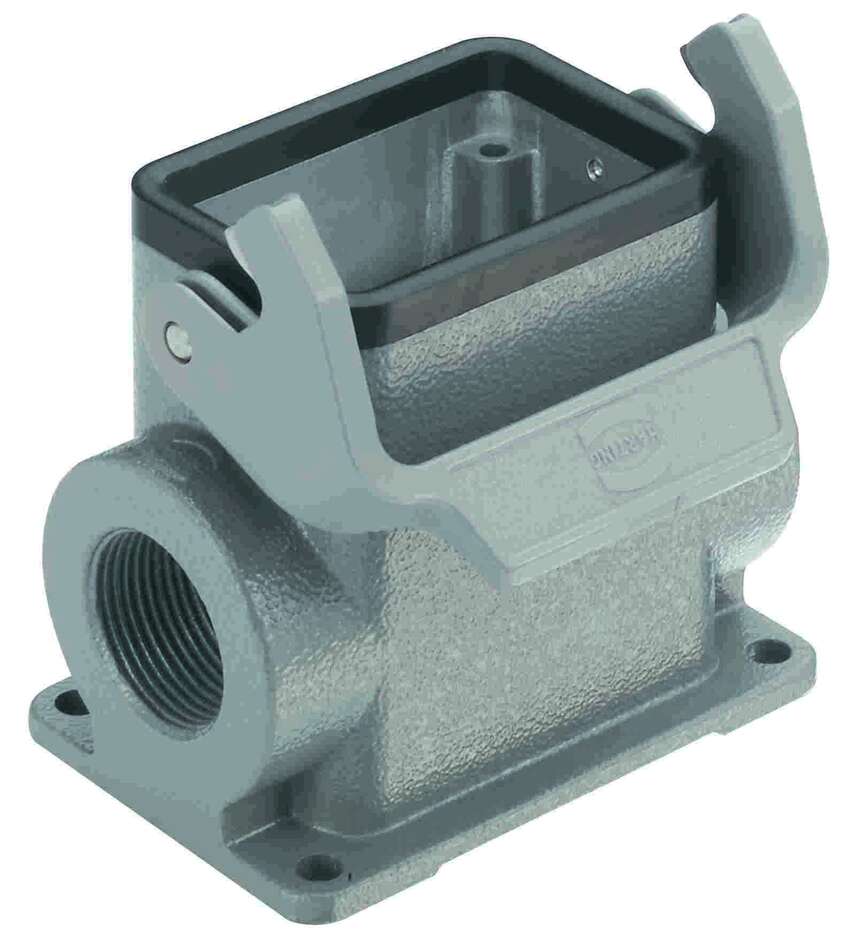

The Han B Base Surface HC 1 Lever 2xM32 is a high construction connector base for industrial surface mounting applications requiring maximum cable capacity. Features aluminum die-cast construction with single locking lever and dual M32 cable glands for the largest cable management capability in robust installations requiring heavy-duty cable connections.
Key Features
- High construction (HC) design for maximum robustness
- Surface mounting with single locking lever
- Size 10B with dual M32 side cable entries for largest cables
- Aluminum die-cast construction, RAL 7037 finish
- Dual M32 cable gland system for maximum cable diameter capacity
- IP65 protection, -40°C to +125°C operation
Technical Specifications
- Housing Size: 10B
- Construction: High construction (HC)
- Cable Entry: Side entry, 2 x M32
- Temperature Range: -40°C to +125°C
- Protection: IP65, NEMA 4/4X/12
- Material: Aluminum die-cast, powder-coated RAL 7037
- Locking: Single lever, polycarbonate and stainless steel
- Mating Cycles: ≥500 cycles
- Standards: IEC 60529, UL 50/UL 50E
Installation Details
- High construction for maximum durability
- Dual M32 cable glands accommodate largest cable diameters
- Single lever operation with maximum cable management capacity
- Compatible with Han 10B series hoods and inserts
Applications
- Heavy-duty power applications requiring largest cable connections
- Industrial systems with maximum cable diameter requirements
- High-power distribution applications needing M32 cable capacity
- Equipment requiring robust construction with maximum cable management
Compatibility
- Compatible with Han 10B series hoods and inserts
- Part of Han B® connector system
- High construction for maximum cable capacity applications
Environmental Protection
- Temperature: -40°C to +125°C operational
- IP Rating: IP65 protection against dust and water
- Construction: Corrosion-resistant aluminum die-cast
- Durability: ≥500 mating cycles with maximum cable capacity
Certifications and Compliance
- Standards: IEC 60529, UL 50/UL 50E
- Environmental: RoHS compliant
- Flammability: V-0 according to UL 94
- Origin: Germany
