Harting Surface housing, double locking, side entry, size 16B

Product Overview

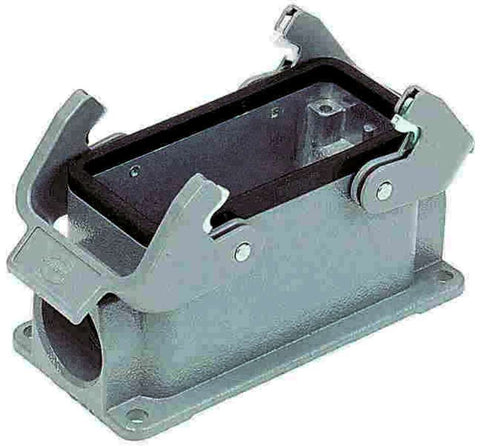

The Han B Base Surface LC 2 Levers 1 x M25 is a surface-mounted connector base housing for industrial applications requiring secure mounting with dual-lever operation. Features aluminum die-cast construction with double locking lever mechanism and single M25 cable entry for reliable electrical connections in demanding industrial environments with enhanced mechanical security.

Key Features

• Surface-mounted base housing with low construction (LC) design
• Double locking lever mechanism for secure connections
• Size 16B with single M25 side cable entry
• Aluminum die-cast construction, RAL 7037 finish
• Dual lever system for enhanced mechanical security
• IP65 protection, suitable for industrial environments

Technical Specifications

• Housing Size: 16B
• Construction: Low construction (LC) surface mount
• Cable Entry: Side entry, 1 x M25
• Temperature Range: Industrial operating range per IEC 61984
• Protection: IP65, UL 50/UL 50E type rating
• Material: Aluminum die-cast, powder-coated RAL 7037
• Locking System: Double locking lever (PC/stainless steel)
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Mating Cycles: High-cycle industrial rating
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• Surface mounting configuration for panel and enclosure installation
• Low construction design minimizes profile height
• Double locking lever system provides secure mechanical connection
• Single M25 entry optimized for standard cable gland applications

Applications

• Industrial automation and control systems requiring surface mounting
• Machinery and equipment with panel-mounted electrical connections
• Control cabinets and enclosures needing reliable connector interfaces
• Applications demanding secure dual-lever locking mechanism

Compatibility

• Compatible with Han 16B series inserts and contacts
• Part of Han B® connector system
• Surface-mount base with double locking mechanism

Environmental Protection

• Protection: IP65 rating against dust and water ingress
• Construction: Corrosion-resistant aluminum die-cast housing
• Sealing: NBR seal material for environmental protection
• Durability: Industrial-grade construction for harsh environments

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076
• Flammability: V-0 according to UL 94 (locking levers)
• Origin: Germany
