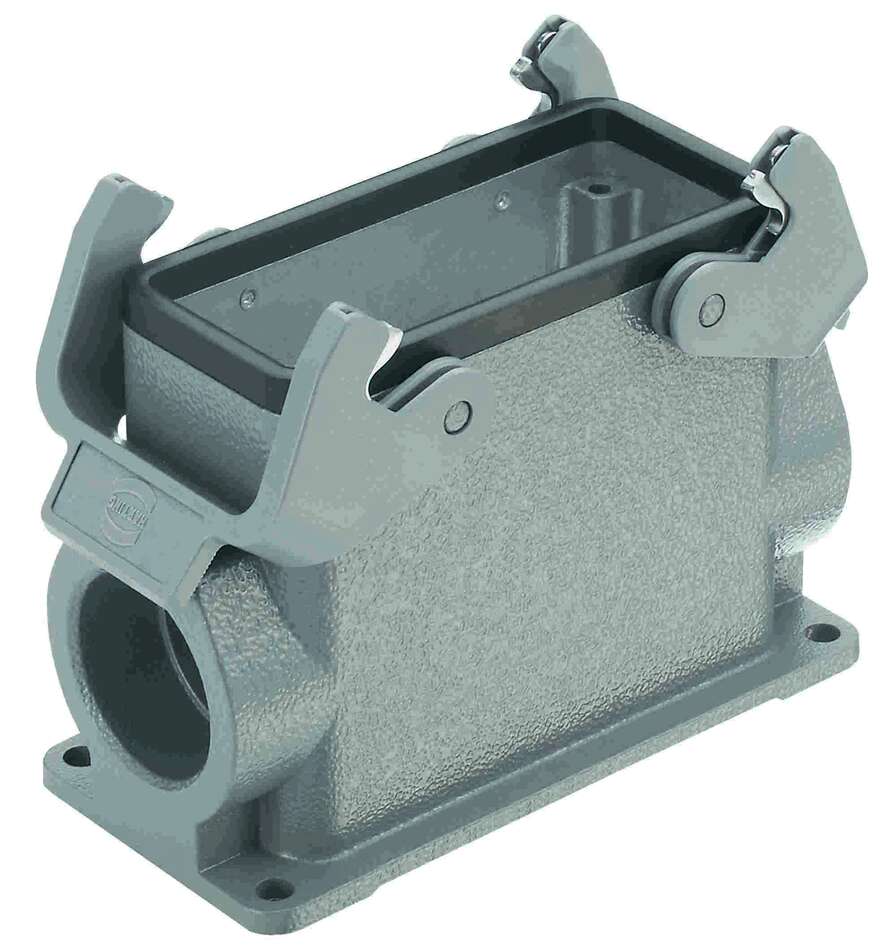

Harting Surface housing, double locking, side entry, M32

Product Overview

The Han B Base Surface HC 2 Levers 1 x M32 is a high construction surface-mounted connector base housing for industrial applications requiring robust mounting with dual-lever operation. Features aluminum die-cast construction with double locking lever mechanism and single M32 cable entry for reliable electrical connections in demanding industrial environments with enhanced mechanical security and larger cable capacity.

Key Features

• Surface-mounted base housing with high construction (HC) design
• Double locking lever mechanism for secure connections
• Size 24B with single M32 side cable entry
• Aluminum die-cast construction, RAL 7037 finish
• High construction profile for increased internal volume
• IP65 protection, suitable for industrial environments

Technical Specifications

• Housing Size: 24B
• Construction: High construction (HC) surface mount
• Cable Entry: Side entry, 1 x M32
• Locking System: Double locking lever (PC/stainless steel)
• Temperature Range: Industrial operating range per IEC 61984
• Protection: IP65, UL 50/UL 50E type rating
• Material: Aluminum die-cast, powder-coated RAL 7037
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Mating Cycles: High-cycle industrial rating
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• Surface mounting configuration for panel and enclosure installation
• High construction design provides increased internal volume
• Double locking lever system provides secure mechanical connection
• Single M32 entry optimized for larger cable applications

Applications

• Industrial automation and control systems requiring larger cable capacity
• Heavy-duty machinery and equipment with high-current applications
• Control cabinets and enclosures needing robust connector interfaces
• Applications demanding secure dual-lever locking with M32 cable entry

Compatibility

• Compatible with Han 24B series inserts and contacts
• Part of Han B® connector system
• High construction surface-mount base with double locking mechanism

Environmental Protection

• Protection: IP65 rating against dust and water ingress
• Construction: Corrosion-resistant aluminum die-cast housing
• Sealing: NBR seal material for environmental protection
• Durability: Industrial-grade construction for harsh environments

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076
• Flammability: V-0 according to UL 94 (locking levers)
• Origin: Germany
