Harting Surface housing, bottom closed, top entry, PG11

Product Overview

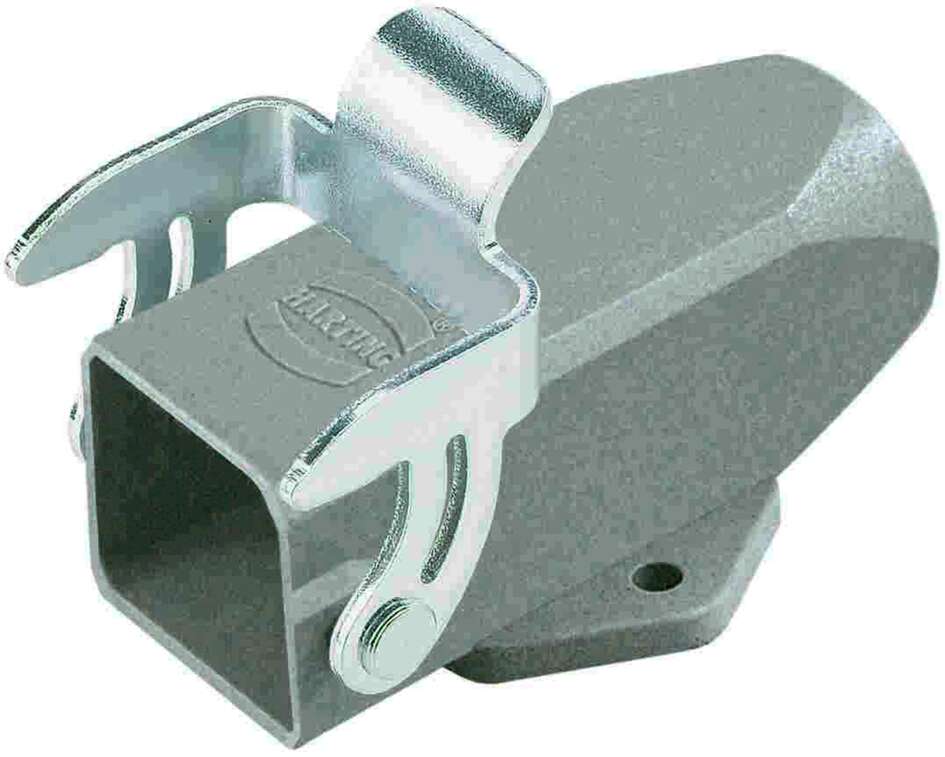

The Han 3A-HSM-L-11 (bottom closed) (Article No.: 09 20 003 1252) is a surface mounted housing with closed bottom design from HARTING's Han A® series. This connector base features bottom closed construction, top entry position, and surface mounting capability for use with Han 3A insert and hood components.

Key Features:

• Belongs to the Han A® series for hoods/housings applications
• Bottom closed construction for enhanced protection
• Top entry position for convenient cable management
• Surface mounting design for flexible installation
• Single locking lever (latch) mechanism for secure connection
• Die cast zinc construction for maximum durability
• Dust gray powder coated finish (RAL 7037)
• PG11 cable entry for standard industrial applications

Technical Specifications:

• Article Number: 09 20 003 1252
• Category: Hoods/Housings
• Series: Han A®
• Size: 3A
• Type: HDC (Heavy Duty Connector) enclosure
• Mounting Type: Surface mounting
• Entry Configuration: Top entry position
• Bottom Design: Bottom closed
• Cable Entry: PG11
• Material: Die cast zinc
• Finish: Powder coated
• Color: Dust gray (RAL 7037)
• Locking Mechanism: Single latch (locking lever)
• Operating Temperature: -40°C to +125°C
• Dimensions: 57.6 mm L x 40 mm W x 50.6 mm H

Applications: This connector housing is designed for heavy duty connector applications requiring reliable electrical connections in demanding industrial environments. The bottom closed design provides enhanced protection for use with Han 3A insert and hood components, making it ideal for automation systems, industrial machinery, process control equipment, and power distribution applications where robust connectivity and environmental protection are essential.

Benefits:

• Bottom closed construction provides superior environmental protection compared to open bottom variants
• Die cast zinc material ensures long-term reliability in harsh industrial environments
• Single locking lever provides quick and secure connection/disconnection operations
• Top entry position facilitates easy cable routing and installation procedures
• Surface mounting design allows for flexible installation options
• Wide operating temperature range (-40°C to +125°C) suitable for extreme environments
• Powder coated finish provides excellent corrosion resistance and durability
• Compatible with Han A® standard connector system ecosystem for system integration

Compatible Products: Designed for use with Han 3A insert and hood components, this housing integrates seamlessly with the Han A® series accessories and inserts, offering flexibility for various connectivity requirements in industrial applications.

Download existing graphical data for this product:

• Technical Data Sheet
• Product Declaration Certificate
• EPLAN Data Portal - CAD & Engineering Data
