Description
xProduct Overview

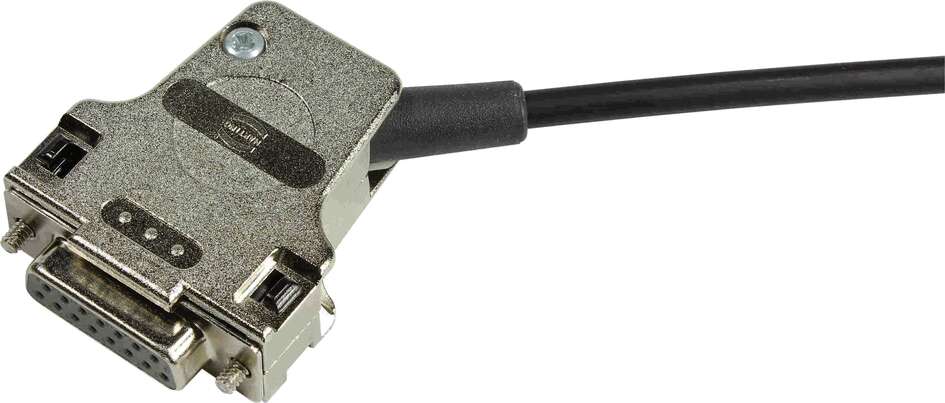

The D-Sub side entry metal hood 15-pole (article no. 09 67 015 0335) is a robust metal shell housing designed for 15-pole D-Sub connectors. Features side cable entry with M3 threaded short locking screws and cable clamp system for secure connection and strain relief in demanding industrial environments.
Key Features:
- 15-pole D-Sub metal hood (Size: D-Sub 2)
- Side cable entry configuration for space-efficient routing
- Metal construction for superior EMI shielding and durability
- M3 short locking screws for secure connection
- Cable clamp with tension relief up to 6.5mm
- IP30 protection rating
Applications: Industrial D-Sub connector assemblies, control systems requiring EMI protection, harsh environment installations, automation equipment, instrumentation connections requiring robust shielding.
Technical Specifications:
- Size: D-Sub 2 (15-pole)
- Material: Metal construction
- Cable Entry: Side entry, single cable
- Thread: M3 short locking screws
- Cable Diameter: 3 - 12.5mm
- Tension Relief: ≤6.5mm
- Ambient Temperature: -35°C to +100°C
- Protection Rating: IP30 (IEC 60529)
- Tightening Torque: 0.4 Nm (all screws)
- Dimensions: 41mm (L) x 40.3mm (W) x 15.4mm (H)
- Weight: 57g
Design Features:
- 2-Part Construction: Separable cover design for easy assembly
- Cable Clamp: Integrated strain relief system
- Metal Shell: Superior EMI shielding and mechanical protection
- M3 Threading: Metric threading for international compatibility
- Side Entry: Space-saving cable routing option
Benefits:
- Robust metal construction for demanding environments
- Excellent EMI shielding protection
- Secure M3 threaded connections
- Integrated strain relief prevents cable damage
- IP30 rating for dust and touch protection
- Wide temperature range for industrial applications
Certifications:
- UL/CSA: UL 1977 ECBT2.E102079
- RoHS: Compliant
- ELV Status: Compliant
- REACH: Compliant (no SVHC substances)
Compliance: RoHS compliant, ELV status compliant, China RoHS, REACH compliant
Download existing graphical data for this product:
Specifications
x| Category | Hoods / Housings |
| Series of hoods/housings | D-Sub |
| Type of hood/housing | Shell housing |
| Description of hood/housing | Cover can be screwed on |
Version
| Size | D-Sub 2 |
| Version | Side entry |
| Number of cable entries | 1 |
| Cable entry | 1x |
| Cable fixing | Cable clamp |
| Tension relief | ≤ 6.5 mm |
| Locking type | With short locking screws Thread M3 |
| 2 parts | Yes |
| Separable | Yes |
Technical characteristics
| Tightening torque | 0.4 Nm Locking screw |
| 0.4 Nm cover screw | |
| 0.4 Nm Cable clamp screw | |
| Ambient temperature | -35 ... +100 °C |
| Degree of protection acc. to IEC 60529 | IP30 |
| Cable diameter | 3 - 12.5 mm |
Material properties
| Material (hood/housing) | Metal |
| Length | 41 mm |
| Width | 40.3 mm |
| Height | 15.4 mm |
| RoHS | compliant |
| ELV status | compliant |
| China RoHS | e |
| REACH Annex XVII substances | Not contained |
| REACH ANNEX XIV substances | Not contained |
| REACH SVHC substances | Not contained |
| California Proposition 65 substances | Not contained |
Specifications and approvals
| UL / CSA | UL 1977 ECBT2.E102079 |
Commercial data
| Packaging size | 10 |
| Net weight | 57 g |
| Country of origin | Germany |
| European customs tariff number | 85389099 |
| GTIN | 5713140090170 |
| eCl@ss | 27440213 D-Sub hood |
| ETIM | EC001133 |
| UNSPSC 24.0 | 39121416 |
