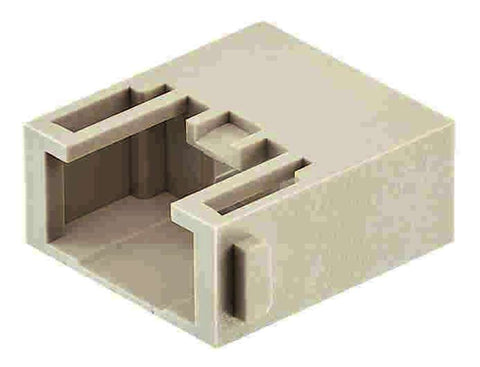

Harting RJ45 Module, single, male, grey

Product Overview

The Han RJ45 module for patch cables & RJ-I is a high-performance Han-Modular® data connection module designed for demanding industrial Ethernet applications with patch cable compatibility and superior connectivity. This precision-engineered single module features male RJ45 configuration with robust polycarbonate construction and adapter functionality, optimized for industrial data systems requiring reliable network connections, modular flexibility, extended service life, and superior mechanical retention in high-cycle data transmission applications.

Key Features

• Series: Han-Modular® Data Communication
• Type: Han® RJ45 Module with Patch Cable Compatibility
• Gender: Male
• Module Size: Single module
• Description: Adapter for patch cable & RJ-I
• Connection Type: RJ45 Ethernet
• Operating Temperature: -40°C to +125°C
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Mating Cycles: ≥500 cycles
• Insulation Resistance: >10¹⁰ Ω
• Flammability Class: UL 94 V-0
• Packaging: 2 pieces per package
• Weight: 5.68g per module
• Cable Requirement: Patch cable ordered separately

Technical Specifications

This male RJ45 module is part of the Han-Modular® data communication system, featuring precision-molded polycarbonate construction with integrated patch cable adapter technology. The module accommodates standard RJ45 patch cables and operates across an enhanced temperature range of -40°C to +125°C with insulation resistance greater than 10¹⁰ Ω. The robust design provides reliable data transmission with pollution degree protection and enhanced durability. Engineered for at least 500 mating cycles with removable module design for serviceability. Compatible with Han-Modular® mounting frames for modular system integration requiring patch cables to be ordered separately.

Compliance & Environmental

• IEC 60664-1 and IEC 61984 compliant
• DNV GL approved for marine applications
• RoHS compliant construction
• ELV status compliant
• China RoHS e compliant
• REACH Annex XVII substances not contained
• REACH ANNEX XIV substances not contained
• REACH SVHC substances not contained
• California Proposition 65 compliant
• Fire protection EN 45545-2 (2020-08) railway standard
• Material flammability class UL 94 V-0
• Enhanced operating temperature: -40°C to +125°C
• High insulation resistance: >10¹⁰ Ω
• Industrial-grade polycarbonate construction
• Single module design for space efficiency
• Male RJ45 patch cable compatibility

Applications

Ideal for industrial Ethernet networks, factory automation systems, and data communication requiring reliable male RJ45 connections with patch cable compatibility. Perfect for manufacturing equipment with demanding network requirements, industrial control systems requiring modular connectivity, and process automation where enhanced data transmission, patch cable flexibility, and modular design capability are essential. The RJ45 compatibility with Han-Modular® system makes it suitable for industrial communication networks, factory floor data systems, and automation applications where superior data reliability, modular design capability, and reliable male connectivity are critical for operational efficiency and network performance.
