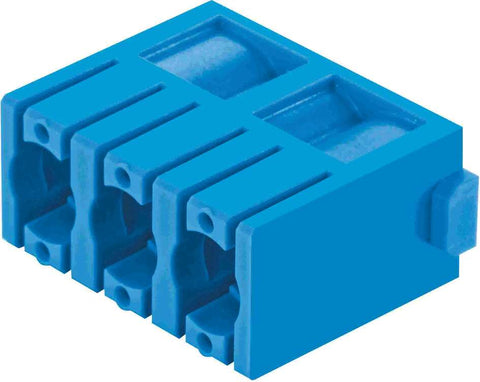

Harting Pneumatic module for 3 contacts, blue

Here's the updated complete product description for SKU 09140033501 without the technical drawing:

Product Overview

The Pneumatic module for 3 contacts is a specialized compressed air transmission module designed for the HARTING Han-Modular® connector system. This single-module insert accommodates both male and female pneumatic configurations and enables the transmission of properly prepared compressed air through connectors alongside electrical power and data signals in a single assembly. The module features distinctive blue polycarbonate construction for easy visual identification and is engineered to provide exceptional durability with 10,000 mating cycles for demanding pneumatic applications.

Key Features

• Series: Han-Modular®
• Category: Pneumatic Transmission Module
• Type: Han® Pneumatic module
• Module Size: Single module
• Gender: Male, Female (dual configuration)
• Contacts: 3
• Contact Compatibility: Ø1.6, 3, and 4mm tubes
• Operating Pressure: Up to 8 bar (116 PSI)
• Operating Temperature: -40°C to +85°C
• Mating Cycles: ≥10,000 cycles
• Material: Polycarbonate (PC)
• Color: Blue (for pneumatic identification)
• Contact Type: Pneumatic contacts (not supplied)

Technical Specifications

This pneumatic module provides reliable compressed air transmission capabilities with an operating pressure up to 8 bar and exceptional durability with at least 10,000 mating cycles. The single-module design accommodates 3 pneumatic contacts compatible with Ø1.6, 3, and 4mm tubes in both male and female configurations. The operating temperature range spans -40°C to +85°C, making it suitable for demanding industrial environments. The distinctive blue polycarbonate construction ensures easy visual identification and differentiation from electrical modules within the Han-Modular® system. Female contacts are available with or without shut-off function - the shut-off version features a spring-loaded valve that closes over an O-ring when disconnected to prevent compressed air from escaping. Note: Contacts must be ordered separately.

Compliance & Environmental

• IEC 61984 and IEC 60664-1 specifications
• UL 1977 ECBT2.E235076 certified
• CSA-C22.2 No. 182.3 ECBT8.E235076 certified
• UL 94 V-0 flammability classification
• Operating temperature range: -40°C to +85°C
• Mating cycles: ≥10,000 cycles
• RoHS compliant, ELV status compliant
• REACH compliant (Annex XVII, XIV, SVHC substances not contained)
• Fire protection on railway vehicles EN 45545-2 (2020-08)

Applications

Ideal for industrial automation systems, manufacturing equipment, and machinery requiring reliable 3-contact pneumatic connections alongside electrical connections. Perfect for applications involving compressed air systems, pneumatic actuators, control units, and automation equipment where multiple pneumatic connections are essential. Excellent for flexible production processes, robotics, and industrial systems where high mating cycles and consolidated connectivity are required. The 3-contact configuration makes it suitable for complex pneumatic control applications requiring multiple air lines, including systems with different tube diameters (Ø1.6, 3, and 4mm) in a single module assembly.
