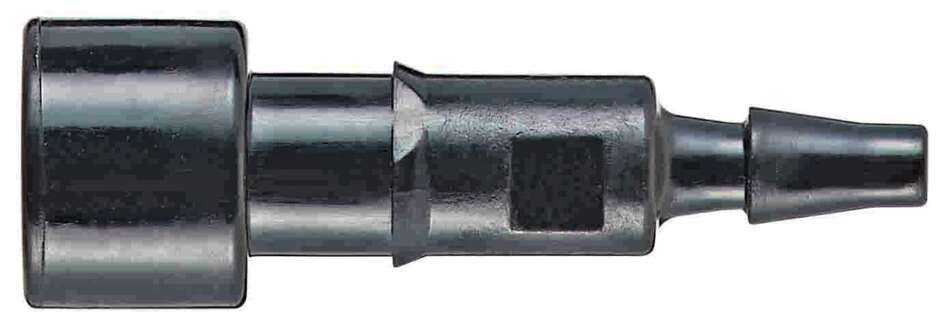

Harting Pneumatic contact with valve, female, straight, 3mm

Product Overview

The pneumatic contact female with valve 3.0mm is a high-performance Han-Modular® pneumatic female contact designed for compressed air reception applications with integrated shut-off valve function. This precision-engineered contact features a 3mm tube internal diameter with spring-loaded valve mechanism and is optimized for industrial pneumatic systems requiring reliable air flow control, automatic shut-off capability, and superior mechanical retention.

Key Features

• Series: Han-Modular® Pneumatic
• Gender: Female with Shut-Off Valve
• Tube Inner Diameter: 3.0 mm
• Shut-off Function: With automatic shut-off valve
• Contact Material: Delrin Acetal (Black)
• Seal Material: Buna-N
• Maximum Operating Pressure: ≤8 bar
• Operating Temperature: -40°C to +80°C
• Manufacturing Process: Turned contacts
• Configuration: Straight with spring-loaded valve
• Module Compatibility: Han® 3 Contact Pneumatic Module
• Application: Clean and dry air transmission with automatic shut-off
• Certifications: UL/CSA approved

Technical Specifications

This female pneumatic contact with valve is part of the Han-Modular® system, featuring precision machining and integrated shut-off valve technology for secure and reliable pneumatic connections. The contact accommodates 3mm internal diameter tubing and operates at pressures up to 8 bar. The Delrin acetal construction with Buna-N seal provides excellent chemical resistance and durability for long-term reliability. The integrated spring-loaded valve mechanism automatically closes over an O-ring when the connector is disconnected, preventing compressed air from escaping and maintaining system pressure. Operating across a wide temperature range from -40°C to +80°C, this contact maintains consistent performance and automatic shut-off functionality in demanding industrial environments. Compatible with Han® 3 Contact Pneumatic Module for modular system integration.

Compliance & Environmental

• UL/CSA certified for industrial applications
• RoHS compliant construction
• ELV status compliant
• China RoHS e compliant
• REACH compliant materials
• Wide operating temperature range: -40°C to +80°C
• Maximum operating pressure: 8 bar
• Industrial-grade Delrin acetal construction (Black)
• Suitable for clean and dry air applications
• Automatic shut-off valve functionality

Applications

Ideal for industrial automation, pneumatic control systems, and compressed air distribution applications requiring reliable female pneumatic connections with automatic shut-off capability. Perfect for manufacturing equipment, automated assembly lines, pneumatic actuators, and control systems where female connection points, automatic air shut-off, and pressure retention are essential. The 3mm tube diameter with integrated valve makes it suitable for precision pneumatic applications, robotic systems, and process automation where controlled air flow, automatic shut-off when disconnected, and modular connectivity are critical for operational efficiency and safety.
