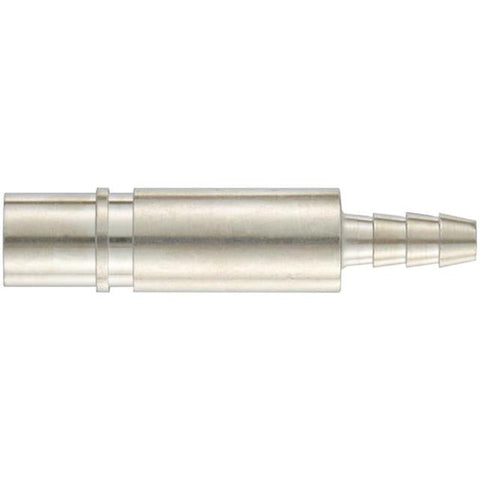

Harting Pneumatic contact w/out shutoff, straight, female, 4mm

Product Overview

The pneumatic contact metal ID 4 female is a high-performance Han-Modular® pneumatic female contact designed for demanding compressed air and vacuum reception applications requiring superior durability and enhanced operating parameters. This precision-engineered metal contact features 4mm inner diameter tube compatibility with robust brass construction and is optimized for industrial pneumatic systems requiring reliable air flow control, vacuum capability, extended service life, and superior mechanical retention in high-cycle female connection applications.

Key Features

• Series: Han-Modular® Pneumatic Metal
• Type: Metal Pneumatic Contact (ID specification)
• Gender: Female
• Tube Inner Diameter: 4.0 mm (ID)
• Shut-off Function: Without shut-off
• Contact Material: Brass (Metal)
• Seal Material: High-grade elastomer
• Maximum Operating Pressure: ≤10 bar (enhanced pressure rating)
• Vacuum Capability: Suitable up to 100 mbar (90% vacuum)
• Operating Temperature: -40°C to +85°C (enhanced range)
• Manufacturing Process: Precision machined metal
• Configuration: Straight
• Mating Cycles: ≥10,000 cycles (enhanced durability)
• Module Compatibility: Han® 09140034501 Pneumatic Module (3-pole for 4mm contacts)
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076

Technical Specifications

This female pneumatic contact is part of the Han-Modular® Pneumatic Module Metal system, featuring precision-machined brass construction for secure and reliable pneumatic connections as the receiving component with enhanced durability, pressure capability, and vacuum compatibility. The contact accommodates 4mm inner diameter tubing and operates at pressures up to 10 bar while also supporting vacuum applications up to 100 mbar (approximately 90% vacuum). The robust brass construction with high-grade elastomer seal provides exceptional chemical resistance and mechanical durability for long-term reliability in demanding applications. Engineered to withstand at least 10,000 mating cycles with an enhanced operating temperature range of -40°C to +85°C, this female contact maintains consistent performance in high-frequency connection/disconnection applications across extreme conditions. The valve mechanism opens when the male contact is inserted, allowing continuous air flow while preventing air escape when disconnected. The new contact mounting design allows for easy contact removal and replacement, providing serviceability advantages. The ID specification ensures compatibility with standard 4mm inner diameter pneumatic tubing systems commonly used in precision industrial applications.

Compliance & Environmental

• CSA-C22.2 No. 182.3 ECBT8.E235076 certified
• UL/CSA approved for industrial applications
• RoHS compliant construction
• ELV status compliant
• China RoHS e compliant
• REACH compliant materials
• Enhanced operating temperature range: -40°C to +85°C
• Enhanced operating pressure: 10 bar (vs. 8 bar for plastic variants)
• Vacuum compatibility: up to 100 mbar (90% vacuum)
• Industrial-grade brass construction
• High-cycle durability: ≥10,000 mating cycles
• Removable contact design for serviceability

Applications

Ideal for industrial automation, flexible production systems, vacuum applications, and compressed air distribution requiring reliable female pneumatic connections with enhanced performance parameters and dual pressure/vacuum capability. Perfect for manufacturing equipment with frequent mating/unmating cycles, automated assembly lines with vacuum systems, precision robotic applications requiring both pressure and vacuum, and control systems where female connection points, high-cycle durability, vacuum compatibility, and superior pressure handling are essential. The 4mm ID compatibility with metal construction makes it suitable for demanding applications including flexible production lines, vacuum pick-and-place systems, precision pneumatic operations, dual pressure/vacuum manufacturing equipment, and process automation where enhanced durability, higher operating pressure, vacuum capability, and reliable modular connectivity are critical for operational efficiency and long-term performance in challenging industrial environments requiring both pneumatic pressure and vacuum functionality with superior female connection reliability.
