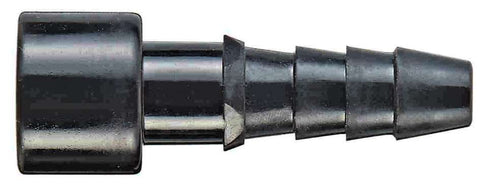

Harting Pneumatic contact, female, straight, 4 mm Part number 09140006253

Product Overview

The pneumatic contact female 4.0mm is a high-performance Han-Modular® pneumatic female contact designed for compressed air reception applications without shut-off function. This precision-engineered contact features a 4mm tube internal diameter and is optimized for industrial pneumatic systems requiring reliable air flow control with superior mechanical retention and environmental resistance for female connection points.

Key Features

• Series: Han-Modular® Pneumatic
• Gender: Female
• Tube Inner Diameter: 4.0 mm
• Shut-off Function: Without shut-off
• Contact Material: Delrin Acetal
• Seal Material: Buna-N
• Maximum Operating Pressure: ≤8 bar
• Operating Temperature: -40°C to +80°C
• Manufacturing Process: Turned contacts
• Configuration: Straight
• Module Compatibility: Han® 09140034501 Pneumatic Module (3-pole for 4mm contacts)
• Application: Clean and dry air transmission
• Certifications: UL/CSA approved

Technical Specifications

This female pneumatic contact is part of the Han-Modular® system, featuring precision machining for secure and reliable pneumatic connections as the receiving component. The contact accommodates 4mm internal diameter tubing and operates at pressures up to 8 bar. The Delrin acetal construction with Buna-N seal provides excellent chemical resistance and durability for long-term reliability. Operating across a wide temperature range from -40°C to +80°C, this female contact maintains consistent performance in demanding industrial environments. The straight configuration without shut-off function provides a valve mechanism that opens when the male contact is inserted, allowing continuous air flow while preventing air escape when disconnected. Compatible with Han® 09140034501 Pneumatic Module for modular system integration.

Compliance & Environmental

• UL/CSA certified for industrial applications
• RoHS compliant construction
• ELV status compliant
• China RoHS e compliant
• REACH compliant materials
• Wide operating temperature range: -40°C to +80°C
• Maximum operating pressure: 8 bar
• Industrial-grade Delrin acetal construction
• Suitable for clean and dry air applications

Applications

Ideal for industrial automation, pneumatic control systems, and compressed air distribution applications requiring reliable female pneumatic connections. Perfect for manufacturing equipment, automated assembly lines, pneumatic actuators, and control systems where female connection points and continuous air flow control are essential. The 4mm tube diameter makes it suitable for standard pneumatic tubing systems, robotic applications, and process automation where precise air pressure control, reliable female connections, and modular connectivity are critical for operational efficiency and system integration.
