Harting M23 HBM front 3,2mm

Product Overview

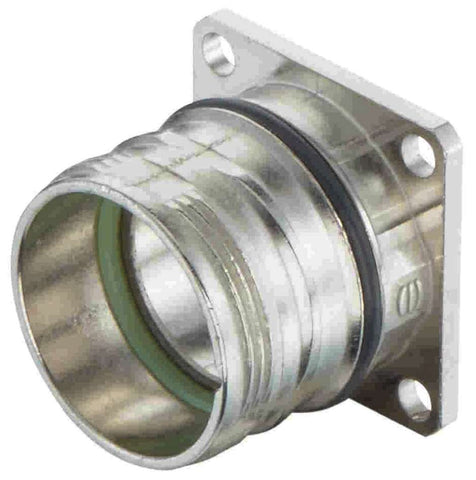

The M23 HBM front 3,2mm is a bulkhead mounted housing for HARTING Han® M23 Signal circular connectors. Features nickel-plated copper-zinc alloy construction with front mounting, dual locking mechanisms, and IP69K environmental protection for demanding industrial applications.

Key Features

• Series: Han® M23 Signal
• Type: Bulkhead mounted housing, front mounting
• Size: M23 connector
• Material: Copper-zinc alloy, nickel plated
• Protection: IP67, IP69/IPX9K (locked position)
• Temperature: -40°C to +125°C
• Locking: Screw locking + ComLock rapid locking
• Contacts: 6 to 19 contacts supported
• Seal: NBR material

Technical Specifications

Robust housing with nickel-plated copper-zinc alloy construction for excellent mechanical strength and corrosion resistance. NBR sealing provides reliable protection across full temperature range. Supports 6-19 contacts with crimp, solder, and PCB connections. Tool-free assembly with excellent EMC properties. Compatible with Han® M23 Signal series inserts.

Compliance & Environmental

• IP67/IP69K protection (IEC 60529, ISO 20653)
• Operating temperature: -40°C to +125°C
• RoHS compliant
• High contact density design
• Excellent EMC properties

Applications

Industrial automation, machinery control, and harsh environment applications requiring superior environmental protection. Ideal for food processing, pharmaceutical equipment, and industrial washing systems where IP69K protection against high-pressure, high-temperature water jets is essential. Perfect for applications needing both secure permanent connections and quick disconnect capabilities.

Download existing graphical data for this product:

• Product Datasheet
• Product Declaration Certificate
