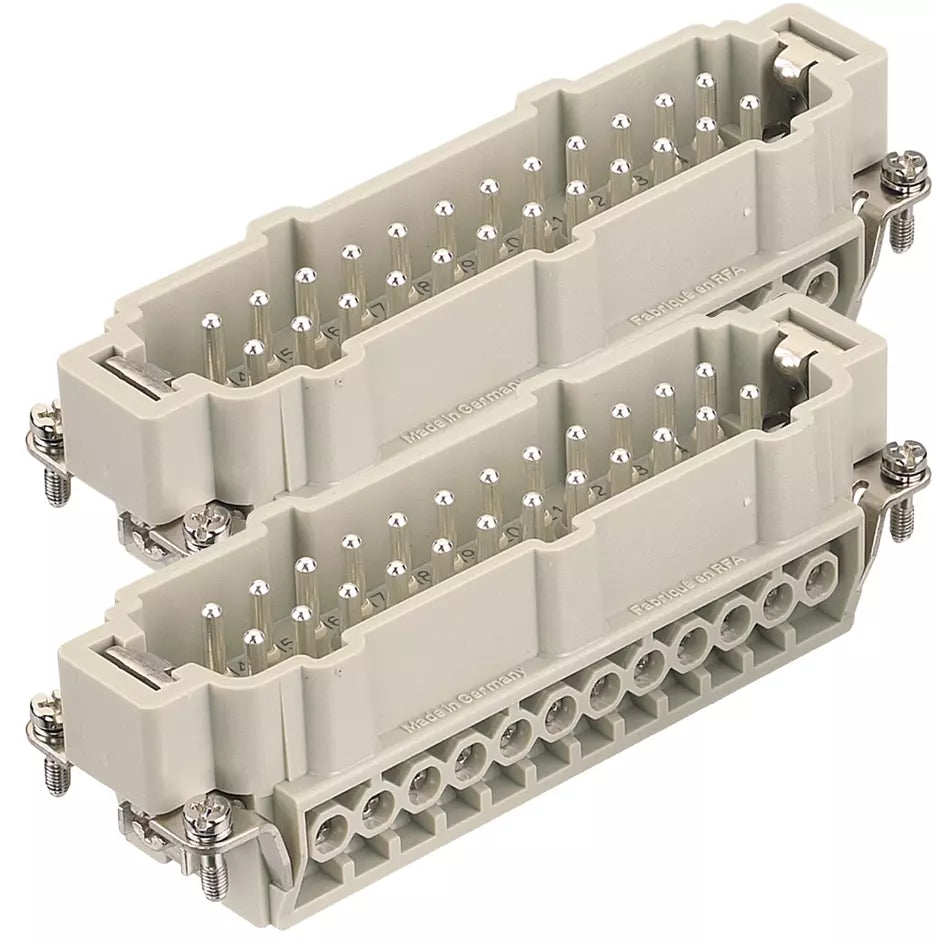

Harting Insert, screw, male, size 48B, c/s 0.75 - 2.5mm² Part number 09330242611

This Harting insert is a male, size 48B connector module with 48 screw-termination contacts, designed for use with heavy-duty industrial connector housings. Contacts are silver-plated copper alloy set in a PC insert body, accepting conductor cross sections of 0.75 to 2.5 mm² (AWG 18 to 14) with a stripping length of 7.5 mm and a tightening torque of 0.5 Nm. It is rated at 500 V and 16 A, suitable for multi-pole field wiring in automation and control panel applications.

Key specifications

• Rated voltage: 500 V
• Connection: Male / 48 Contacts
• Flammability: V-0
