Harting Insert, screw, male, size 16A, c/s 0.75 - 2.5mm²

Product Overview

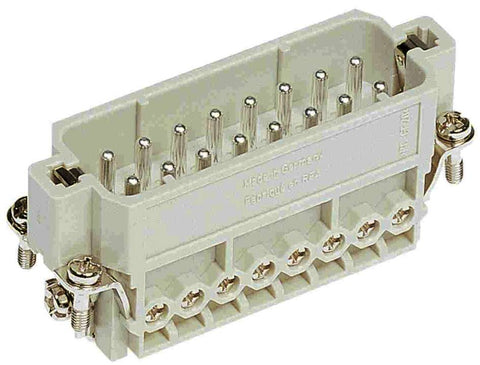

The Han 16A-STI-S is a heavy-duty male connector insert from HARTING's Han A® series, designed for demanding industrial applications. This 16-position screw terminal insert features a light grey (RAL 7032) color and offers reliable connectivity for power and signal transmission.

Key Specifications

• Article Number: 09 20 016 2612
• Series: Han A®
• Gender: Male insert
• Number of Contacts: 16 + PE (17 total contacts)
• Current Rating: 16A
• Voltage Rating: 250V
• Wire Cross Section (max): 2.5 mm²
• Termination Method: Screw connection
• Color: Light grey (RAL 7032)

Technical Features

• Construction: Slim construction design
• Mechanical Life: Greater than or equal to 500 mating cycles
• Contact Plating: Silver plated contacts
• Poles: 3-16 pole configurations available (screw connection)

Applications & Usage HARTING contact inserts have a wide range of industrial uses. Inserts are selected according to the desired number of poles and voltage and current ratings. The Han 16A-STI-S is ideal for applications requiring reliable power and signal transmission in industrial environments.

Important Safety Notes

• These connectors should not be mated or unmated under electrical load
• Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection
