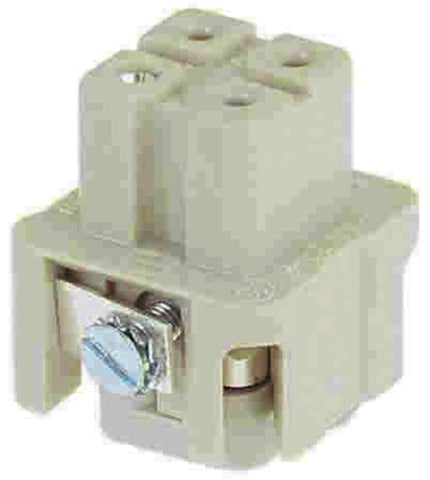

Harting Insert, screw, female, size 3A, c/s 0.75 - 1.5mm².

Product Overview

The Han 3A F Insert Screw (Article No.: 09 20 003 2711) is a female insert from HARTING's Han A® series designed for heavy duty connector applications. This 3-position socket insert features screw terminal connections and is rated for 10A current, providing reliable power and signal transmission in industrial environments.

Key Features:

• Belongs to the Han A® series for inserts applications
• Female gender configuration with receiving sockets
• Screw termination method for secure wire connections
• 3 contacts plus PE (protective earth) configuration
• 10A current rating for power applications
• Polycarbonate (PC) construction for durability
• Pebble grey color (RAL 7032) for easy identification
• Silver-plated copper alloy contacts for excellent conductivity
• Slim construction design for space-efficient installation
• Mechanical working life of ≥500 mating cycles

Technical Specifications:

• Article Number: 09 20 003 2711
• Category: Inserts
• Series: Han A®
• Size: 3A
• Gender: Female (socket)
• Termination Method: Screw termination
• Number of Contacts: 4 contacts (3 + PE)
• Current Rating: 10A
• Rated Voltage: 230/400V (600V in some applications)
• Conductor Cross-Section: 0.75 - 1.5 mm²
• Wire Size (AWG): 16-18 AWG
• Material: Polycarbonate (PC)
• Color: Pebble grey (RAL 7032)
• Contact Material: Copper alloy, silver plated
• Contact Finish: Silver plated
• Mechanical Life: ≥500 mating cycles
• Flammability Rating: UL94 V-0
• Stripping Length: 2.5 - 5.5 mm

Compliance & Certifications:

• DNV GL: UL 1977 ECBT2.E235076
• CSA: C22.2 No. 182.3 ECBT8.E235076
• RoHS Compliant: Yes

Applications: This female insert is designed for heavy duty connector applications requiring reliable electrical connections in demanding industrial environments. Ideal for power distribution, automation systems, industrial machinery, process control equipment, and applications where secure screw terminal connections are required for conductors up to 1.5 mm². The socket configuration makes it perfect for receiving male counterparts in industrial connection systems.

Benefits:

• Screw termination provides secure and reliable wire connections without special tools
• Female configuration with receiving sockets ensures safe connection with male counterparts
• 10A current rating suitable for power applications up to 230/400V
• Conductor cross-section range (0.75-1.5 mm²) accommodates standard industrial wire sizes
• High mechanical working life (≥500 cycles) ensures long-term reliability
• Pebble grey color coding aids in system identification and maintenance
• Slim construction maximizes space utilization in connector assemblies
• UL94 V-0 flammability rating provides enhanced safety
• Compatible with Han A® ecosystem for flexible system integration
• Silver-plated contacts ensure excellent electrical conductivity and corrosion resistance

Safety Considerations: These connectors should not be mated or unmated under electrical load. When multiple connectors of the same or different types are arranged in a line, they should be polarized to prevent the possibility of wrong connection.

Compatible Products: Designed to work seamlessly with Han A® series 3A size housings, hoods, and male insert counterparts (such as the Han 3A M Insert Screw - 09200032611). Compatible with all metal and plastic hoods and housings of the Han® 3A series, providing flexibility for various connectivity requirements in industrial applications.

Installation: Features screw terminal connections that allow for quick and secure wire attachment. Strip the wire to the recommended length (2.5-5.5 mm) and secure using the screw terminals. The insert design ensures proper alignment and secure mating with corresponding male inserts in Han A® connector systems.
