Harting Insert, screw, female, size 3A, c/s 0.75 - 1.5mm²

Product Overview

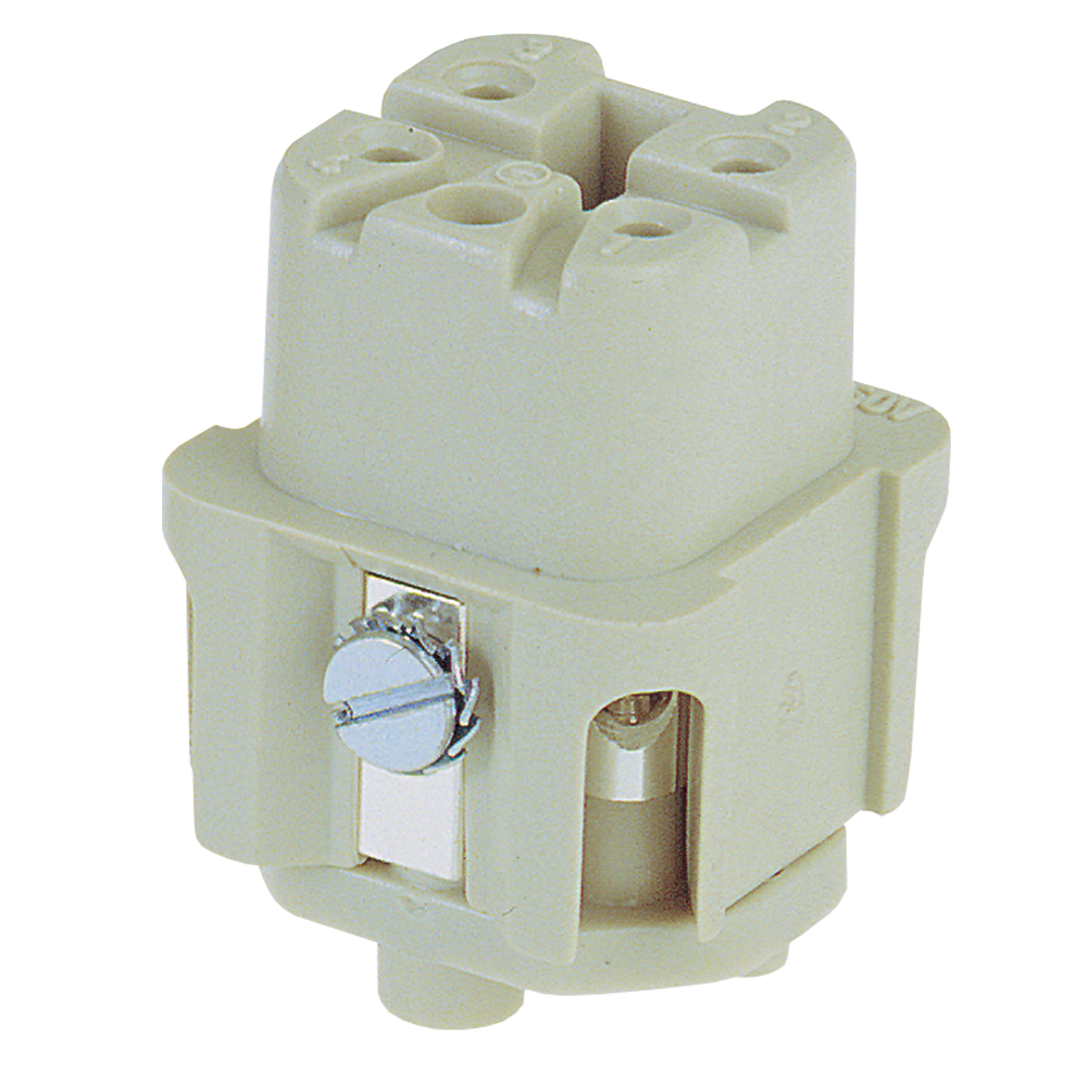

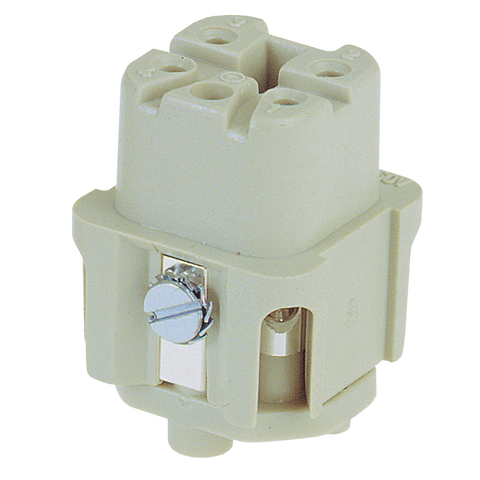

The Han A 04 Pos. F Insert Screw (Article No.: 09 20 004 2711) is a female insert from HARTING's Han A® series featuring screw termination for secure wire connections. This 4-position socket insert supports conductors from 0.75-1.5 mm² (16-18 AWG) with 10A current rating.

Key Features:

• Han A® series female insert with screw termination
• 4 contacts plus PE configuration (5 total contacts)
• Screw connection for 0.75-1.5 mm² (16-18 AWG) conductors
• Polycarbonate construction in RAL 7032 pebble grey
• Silver-plated copper alloy contacts, UL94 V-0 flammability rating
• Slim construction design with ≥500 mating cycles mechanical life

Technical Specifications:

• Article Number: 09 20 004 2711
• Series: Han A®, Size 3A (4A shell)
• Gender: Female (receptacle/socket)
• Termination Method: Screw termination
• Contacts: 4 + PE (5 total)
• Current Rating: 10A
• Rated Voltage: 230/400V
• Conductor Cross-Section: 0.75 - 1.5 mm²
• Wire Size: 16-18 AWG
• Material: Polycarbonate (PC), RAL 7032 pebble grey
• Contact Material: Copper alloy, silver plated
• Flammability Rating: UL94 V-0
• Stripping Length: 2.5 - 5.5 mm
• Mechanical Life: ≥500 mating cycles

Compliance & Certifications:

• DNV GL: UL 1977 ECBT2.E235076
• CSA: C22.2 No. 182.3 ECBT8.E235076
• RoHS Compliant: Yes

Applications: Ideal for industrial power and signal applications requiring reliable electrical connections. Suitable for automation systems, industrial machinery, and process control equipment where screw terminal connections provide secure wire attachment for 4+PE configurations.

Benefits:

• Screw termination provides secure wire connections without special tools
• Female socket configuration ensures safe connection with male counterparts
• 4+PE contacts provide power and protective earth connectivity
• Slim construction maximizes space utilization in connector assemblies
• Silver-plated contacts ensure excellent electrical conductivity
• Compatible with Han A® 3A/4A series connector ecosystem

Safety Considerations: These connectors should not be mated or unmated under electrical load. When multiple connectors are arranged in line, they should be polarized to prevent wrong connections.
