Harting Insert, screw, female, size 24B, c/s 0.75 - 2.5mm² Part number 09330242701

Product Overview

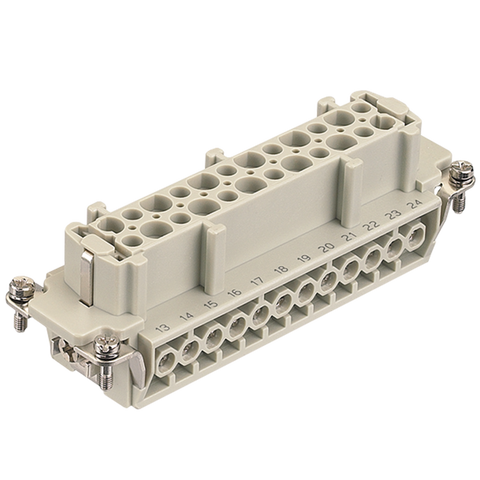

The Han E 24 Position Female Insert with screw termination is a robust industrial connector insert designed for heavy-duty power applications. This insert features 24 contacts plus PE (protective earth) connection and is engineered for reliable electrical connections in demanding industrial environments. With 24 positions, this insert has robust screw termination for wire sizes of up to 14 AWG and is only compatible with corresponding Han E power connector components.

Key Features

• 24 positions plus PE contact for comprehensive connectivity
• Female gender configuration with numbered contacts (1-24)
• Screw termination method for secure and reliable wire connections
• Wire protection integrated into design
• Silver plated copper alloy contacts for optimal conductivity
• Light grey (RAL 7032) polycarbonate housing
• Locking clamp ensures high mechanical stability even under vibration or shock loads
• Mechanical working life of ≥500 mating cycles

Technical Specifications

• Current Rating: 16A
• Rated Voltage: 500V (600V UL/CSA)
• Rated Impulse Voltage: 6kV
• Conductor Cross-Section: 0.75 - 2.5 mm²
• Wire Size: AWG 18 - AWG 14
• Contact Resistance: ≤1 mΩ
• Insulation Resistance: >10¹⁰ Ω
• Temperature Range: -40°C to +125°C
• Pollution Degree: 3
• Stripping Length: 7.5mm
• Housing Material: Polycarbonate (PC)
• Contact Material: Copper alloy with silver plating
• Flammability Rating: UL94 V-0
• Housing Size: 24B
• Net Weight: 120g

Installation Details

• Contact Screw: M3 (0.5 Nm tightening torque)
• Fixing Screws: M3 (0.5 Nm tightening torque)
• PE Screw: M4 (1.2 Nm tightening torque)
• Recommended Screwdrivers:
  • Slotted 0.6 x 3.5
  • Slotted 0.8 x 4.5
  • Phillips PH1 and PH2

Applications

Ideal for use in mechanical engineering, wind energy and other applications in tough environments. Harting industrial connectors are suitable for all applications that require a safe and removable electrical connection in protected electrical areas. Additional applications include:

• Factory automation systems
• Industrial machinery and equipment
• Rail technology installations
• Control cabinet wiring
• Power distribution systems
• Rack and panel mounting applications

Compatibility

• Compatible with Size 24B hoods and housings
• Works with all Han® B series housings
• Can be used for rack and panel mounting applications
• Compatible with corresponding Han E male inserts (09330242601) for complete connectivity solutions
• Featuring connecting M3 screws, the female insert is easy to incorporate into Han E housings, assembling to form a secure and robust heavy-duty power connector
• Suitable for cable plugs, cable coupling hoods, bulkhead/panel mounting housings, and surface mounting housing sockets

Important Configuration

• These connectors should not be mated or unmated under electrical load
• Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection
• These Han E® inserts are rated at 16A and are intended for use with hoods and housings

Certifications and Compliance

• Standards: IEC 60664-1, IEC 61984
• UL Certification: UL 1977 ECBT2.E235076, UL 2237 PVVA2.E318390
• CSA Certification: CSA-C22.2 No. 182.3 PVVA8.E318390
• DNV GL Approved
• RoHS: Compliant with applicable exemptions
• ELV Status: Compliant with exemption
• China RoHS: Grade 50
• REACH Compliance: SVHC substances present (Lead)
• Fire Protection: EN 45545-2 compliant for railway vehicles
• Country of Origin: Germany

Environmental Compliance

• Contains lead as part of copper alloy composition
• California Proposition 65: Contains lead and nickel
• REACH SVHC substance declaration available
• Meets railway vehicle fire protection standards R22 and R23 (HL 1-3)
