Harting Insert, screw, female, size 16A, c/s 0.75 - 2.5mm² Part number 09200162812

Product Overview

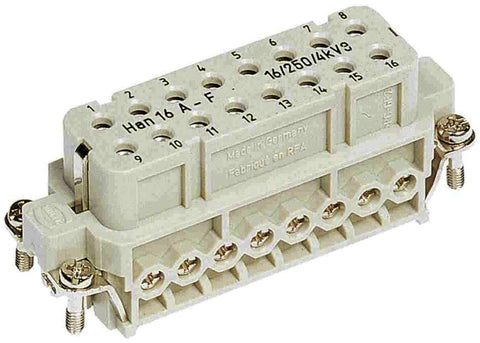

The Han 16A-BU-S is a heavy-duty female connector insert from HARTING's Han A® series, engineered for demanding industrial applications. This 16-position socket insert features screw termination and provides reliable connectivity for power and signal transmission in harsh industrial environments.

Key Specifications

• Article Number: 09 20 016 2812
• Series: Han A®
• Gender: Female insert (socket)
• Number of Contacts: 16 + PE (17 total contacts)
• Current Rating: 16A
• Voltage Rating: 250V (up to 600V in some configurations)
• Wire Cross Section: 0.75 to 2.5 mm² (14-18 AWG)
• Termination Method: Screw connection
• Material: Polycarbonate insert with copper alloy contacts

Technical Features

• Construction: Slim construction design
• Mechanical Life: Greater than or equal to 500 mating cycles
• Contact Plating: Silver plated contacts
• Contact Material: Copper alloy
• Wire Range: Accommodates both stranded and finely stranded conductors
• Temperature Range: -40°C to +125°C operating temperature

Applications & Usage HARTING contact inserts have a wide range of industrial uses and are ideal for automotive, machine, and plant engineering applications. The Han 16A-BU-S female socket insert is selected according to the desired number of poles and voltage and current ratings. Two 16P + E inserts may be accommodated within a Size 32A housing for increased functionality.

Compatibility

• Compatible with Han A series male inserts
• Suitable for all metal and plastic hoods and housings of the Han A series
• Part of the Han-Modular Family connector system

Important Safety Notes

• These connectors should not be mated or unmated under electrical load
• Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection
• Suitable for demanding environments in automobile and mechanical engineering industries
