Harting Insert, screw, female, size 10A, c/s 0.75 -2.5mm²

Product Overview

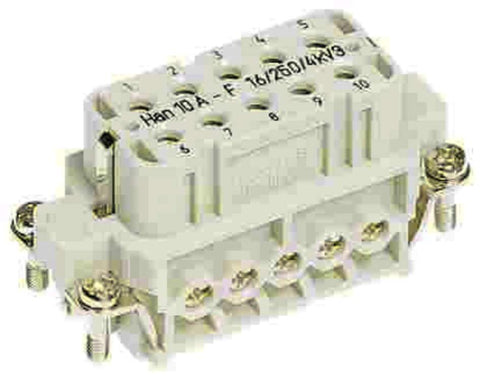

The Han 10A-BU-S (Article No.: 09 20 010 2812) is a female insert from HARTING's Han A® series featuring screw termination for secure wire connections. This 10-contact socket insert supports conductors from 0.75-2.5 mm² with 16A current rating for demanding industrial power applications.

Key Features:

• Han A® series female insert with screw termination
• 10 contacts plus PE configuration (11 total contacts)
• 16A current rating for higher power applications
• Screw connection for 0.75-2.5 mm² (1-2.5 mm²) conductors
• Polycarbonate construction with UL94 V-0 flammability rating
• Silver-plated copper alloy contacts for excellent conductivity
• Mechanical durability of 500 cycles

Technical Specifications:

• Article Number: 09 20 010 2812
• Category: Inserts
• Series: Han A®, Size 10A
• Gender: Female (socket)
• Termination Method: Screw termination
• Contacts: 10 + PE (11 total)
• Current Rating: 16A
• Rated Voltage: 250V
• Conductor Cross-Section: 0.75 - 2.5 mm² (1-2.5 mm²)
• Operating Temperature: -40°C to +125°C
• Material: Polycarbonate
• Contact Material: Copper alloy, silver plated
• Flammability Rating: UL94 V-0
• Mechanical Durability: 500 cycles
• Insert Mounting: 49.5 x 16 mm

Applications: Ideal for industrial power and signal applications requiring higher current capacity and reliable electrical connections. Suitable for automation systems, industrial machinery, and process control equipment where 10+PE configurations with 16A rating provide robust connectivity for demanding applications.

Benefits:

• Screw termination provides secure wire connections without special tools
• 16A current rating handles higher power requirements than standard 10A inserts
• Female socket configuration ensures safe connection with male counterparts
• 10+PE contacts provide comprehensive power and signal connectivity
• Wide operating temperature range (-40°C to +125°C) for extreme conditions
• Silver-plated contacts ensure excellent electrical conductivity and corrosion resistance
• UL94 V-0 flammability rating provides enhanced fire safety
• 500-cycle mechanical durability ensures long-term reliability

Safety Considerations: These connectors should not be mated or unmated under electrical load. When multiple connectors are arranged in line, they should be polarized to prevent wrong connections.

Download existing graphical data for this product:

• Technical Data Sheet
• Product Declaration Certificate
• EPLAN Data Portal - CAD & Engineering Data
