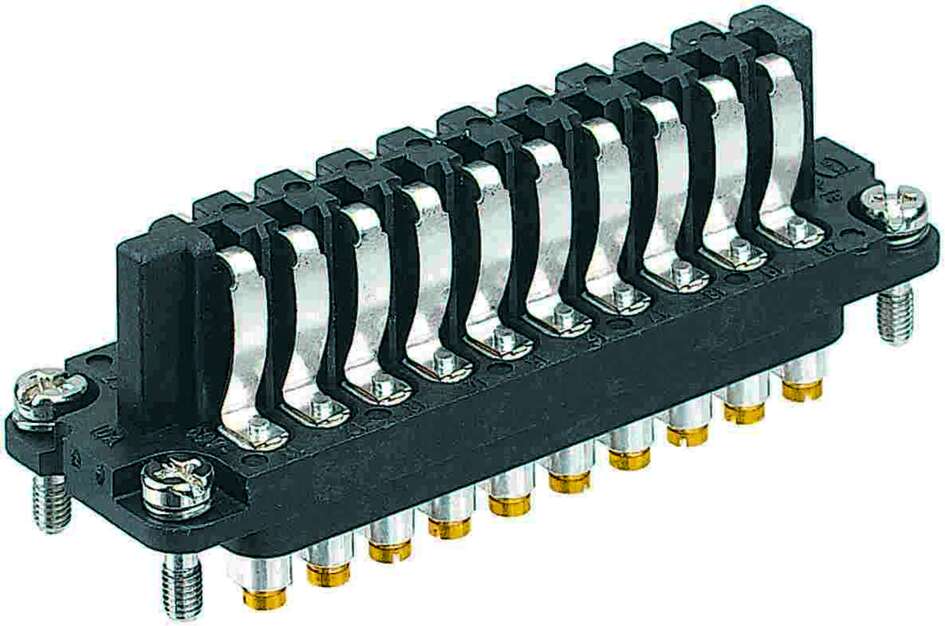

Harting Insert, screw, female, black, size 16A, c/s 1.5mm²

Product Overview

This Staf 20-position female insert with screw terminals from Harting's Connectivity & Networks product range provides reliable industrial connectivity solutions for heavy-duty applications. Part of the proven Staf series, this insert offers secure screw terminal connections for easy field installation and maintenance in demanding industrial environments.

Key Features

• 20-position female contact configuration
• Screw terminal connection system for secure wire attachment
• Compact rectangular design for space-efficient installations
• Industrial-grade construction for demanding environments
• Part of Harting's established Staf connector series
• Compatible with Han 16A rectangular shell size

Technical Specifications

• Category: Inserts
• Series: Staf
• Connection Type: Screw Terminal
• Gender: Female (Socket/Buchse)
• Contact Count: 20 positions
• Rated Voltage (UL): 50 V
• Rated Voltage (CSA): 50 V
• Rated Voltage (AC): 25 V
• Rated Voltage (DC): 60 V
• Current Rating: 10 A
• Operating Temperature: -40°C to +100°C
• Wire Size Range: 16 AWG
• Material Flammability: UL 94 HB rated
• Shell Size: Han 16A rectangular

Compliance

• Electrical Standards: DIN VDE 0627, DIN VDE 0110, DIN EN 61984
• Safety Approvals: UL and CSA certified
• Material Standards: UL 94 HB flammability classification
• European Standards: SEV approved
• RoHS Compliant: Yes

Applications This female insert is designed for use in industrial control systems, automation equipment, and machinery where reliable multi-pole connections are required. The screw terminal design allows for easy field wiring and maintenance, making it ideal for control panels, machine interfaces, and industrial communication systems requiring female socket connections.
