Harting Insert, quick Lock, female, c/s 0.25 - 1.5mm² Part number 09360082732

Product Overview

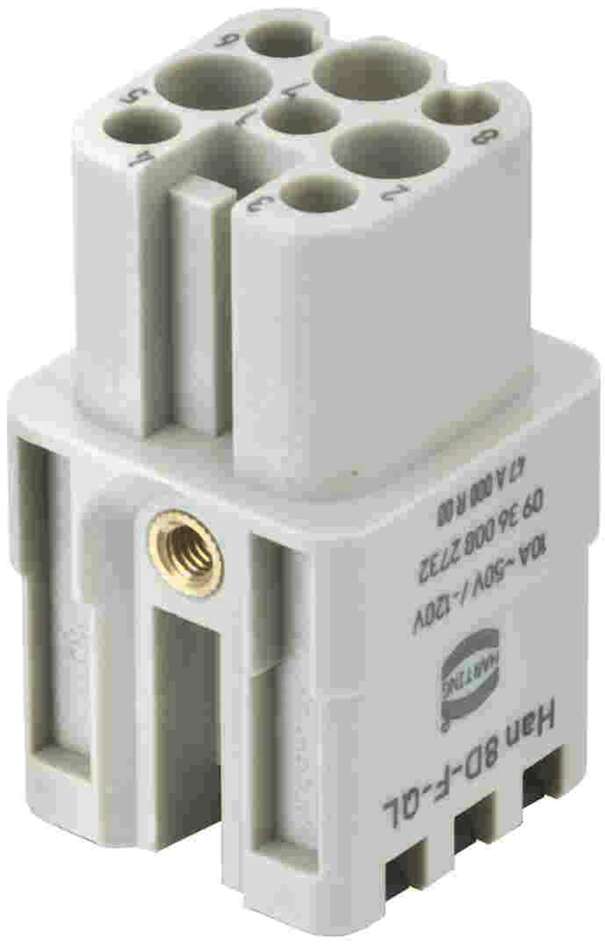

The Han 8D-F Quick Lock 1.5mm² is an innovative female connector insert featuring Han-Quick Lock® termination technology for rapid, tool-free wire connections. Part of the Han D® series, this 8-position insert accommodates conductor cross-sections from 0.25 to 1.5 mm², making it ideal for signal and low-power applications. The Quick Lock technology revolutionizes installation by eliminating the need for specialized tools while ensuring reliable, vibration-resistant connections in industrial environments.

Key Features

• 8 positions for signal and low-power connectivity
• Han-Quick Lock® tool-free termination technology
• Female gender configuration
• Accommodates 0.25 to 1.5 mm² conductor cross-sections
• No special tools required for wire termination
• Rapid installation reduces assembly time by up to 50%
• Vibration-resistant connection design
• Pebble grey (RAL 7032) polycarbonate housing
• Silver-plated copper alloy contacts

Technical Specifications

• Current Rating: 10A
• Rated Voltage: 50V (250V according to application)
• Conductor Cross-Section: 0.25 - 1.5 mm²
• Wire Size: AWG 16 - AWG 22
• Number of Contacts: 8
• Temperature Range: -40°C to +125°C
• Housing Size: 3A/6B
• Series: Han D®
• Termination Type: Han-Quick Lock®
• Housing Material: Polycarbonate (PC)
• Contact Material: Copper alloy with silver plating
• Flammability Rating: UL94 V-0
• Contact Resistance: ≤5 mΩ
• Insulation Resistance: >10¹⁰ Ω
• Mechanical Durability: ≥500 mating cycles

Installation Advantages

• Tool-Free Technology: Quick Lock mechanism eliminates need for crimping or screwing tools
• Time Efficiency: Installation time reduced by up to 50% compared to traditional methods
• Simple Process: Push-in termination - strip wire, insert, and lock
• Visual Confirmation: Clear indication when wire is properly seated
• Error Prevention: Intuitive design minimizes installation mistakes
• Field-Serviceable: Easy wire removal and re-termination if needed
• Cost Savings: No tool investment or maintenance required

Quick Lock Technology Benefits

• Spring-loaded locking mechanism ensures consistent contact pressure
• Automatic wire retention upon insertion
• Vibration and shock resistant connection
• Maintenance-free after installation
• Suitable for solid and stranded conductors
• Release mechanism allows easy wire removal when needed

Applications

Ideal for signal and control applications:

• Industrial automation control signals
• Machine control and monitoring systems
• Sensor and actuator connections
• Process control instrumentation
• Building automation systems
• Railway and transportation signaling
• Robotics and material handling equipment
• Field installations where tools are not readily available

Compatibility

• Compatible with Han® 3A/6B hoods and housings
• Works with all standard Han D® series components
• Can be used for rack and panel mounting applications
• Compatible with corresponding Han 8D-M Quick Lock male inserts (09360082632)
• Suitable for Han-Modular® system integration

Wire Preparation Requirements

• Stripping Length: 8-10mm
• Wire Types: Solid or stranded conductors
• Conductor Material: Copper
• Insulation: Standard PVC, XLPE, or similar
• Preparation: Clean, straight cut required

Key Advantages

• Speed: Dramatically reduces installation time
• Simplicity: No special training required
• Reliability: Consistent termination quality
• Flexibility: Accommodates various wire sizes
• Durability: Vibration-proof connection
• Serviceability: Easy maintenance and modification

Important Configuration

• Connectors should not be mated or unmated under electrical load
• Ensure wire gauge matches specified range (0.25-1.5 mm²)
• Proper wire stripping length is critical for secure connection
• Verify polarity and pin assignments before connection
• Use appropriate Han® housings for environmental protection

Certifications and Compliance

• Standards: IEC 61984, EN 60664-1
• UL Certification: According to UL 1977
• CSA Certification: According to applicable standards
• RoHS: Compliant
• ELV Status: Compliant
• REACH Compliance: According to current regulations
• Industrial Standards: Meets requirements for industrial connectivity
• Country of Origin: Germany

Environmental Specifications

• Operating temperature: -40°C to +125°C
• Storage temperature: -40°C to +85°C
• Relative humidity: Up to 95% (non-condensing)
• Vibration resistance according to IEC 60068-2-6
• Shock resistance according to IEC 60068-2-27
