Harting Insert, crimp termination, female, c/s 0.14 - 2.5mm², 10A

Product Overview

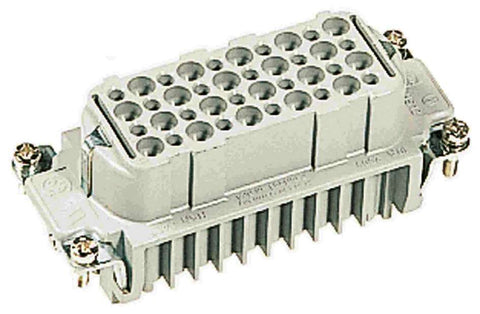

The Han D 40 Pos. F Insert Crimp is a high-density female connector insert from HARTING's Han D® series, designed for maximum connectivity in demanding industrial applications. This 40-position crimp insert provides the highest contact density available in the Han D series while maintaining reliable performance.

Key Specifications

• Article Number: 09 21 040 3101
• Series: Han D®
• Gender: Female insert (socket)
• Number of Positions: 40 positions
• Size: 16B
• Current Rating: 10A per contact
• Voltage Rating: 250V (600V acc. to UL/CSA)
• Conductor Cross-Section: 0.14 to 2.5 mm²
• Termination Method: Crimp termination
• Operating Temperature: -40°C to +125°C

Technical Features

• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Contact System: Separate crimp contacts (ordered separately)
• Housing Compatibility: Han D® series 16B size hoods and housings
• Professional Installation: Requires crimp tool for proper termination

Applications & Usage Ideal for complex industrial applications requiring maximum contact density. Perfect for large-scale control systems, high-density automation equipment, and extensive data acquisition systems where space efficiency and reliability are critical.

Certifications & Compliance

• Material Flammability: UL 94 V-0 class
• UL Listed: 600V rating
• CSA Certified: CSA-C22.2 No. 182.3 ECBT8.E235076
