Harting Insert, crimp, male, size 6B, c/s 0.14 - 2.5mm²

Product Overview

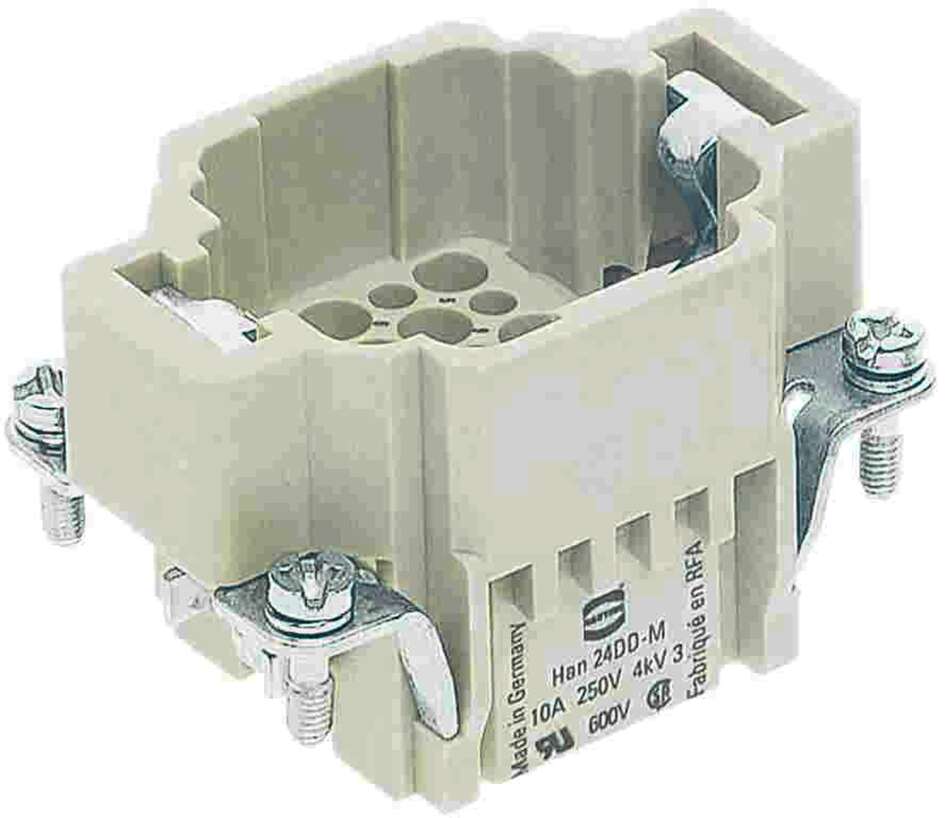

The Han 24DD-SMC-MI-CRT (SKU: 09160243001) is a male insert from HARTING's Han DD® series, designed for crimp termination applications. This rectangular insert features 24 contacts with a rated current of 10A and accommodates conductor cross-sections from 0.14 to 2.5 mm². The insert is manufactured in RAL 7032 (pebble grey) color and is designed for Size 6B applications.

Key Features & Specifications

• Series: Han DD®
• Category: Inserts
• Gender: Male
• Termination Method: Crimp termination
• Number of Contacts: 24
• Rated Current: 10A
• Conductor Cross-Section: 0.14 ... 2.5 mm²
• Size: 6B
• Color: RAL 7032 (pebble grey)

Applications & Benefits

HARTING Han® Industrial Connectors are suited for the harshest requirements in industrial environments and are used in all applications requiring a safe and removable electrical connection. The field of application for HARTING connectors extends from protected electrical areas in control cabinets to outdoor applications.

The Han DD® series is part of HARTING's comprehensive connector portfolio that enables connections ranging from sensitive signals of a few milli-volts used in Gigabit transmissions, up to 600 Amps or 5000 Volts for high power applications.

Technical Characteristics

Based on similar Han DD® modules in the series, this insert typically offers:

• High-quality crimp termination for reliable connections
• Industrial-grade construction for demanding environments
• Compatible with HARTING's modular connector system
• Designed for multiple mating cycles in industrial applications

Compliance & Environmental

• RoHS compliant
• ELV status compliant
• China RoHS compliant
• Material flammability class acc. to UL 94 V-0
• REACH Annex XVII substances: Not contained

Download existing graphical data for this product:

• Product Data Sheet
• Product Datasheet
