Harting Insert, crimp, male, size 3A, c/s 0.14 - 2.5mm²

Product Overview

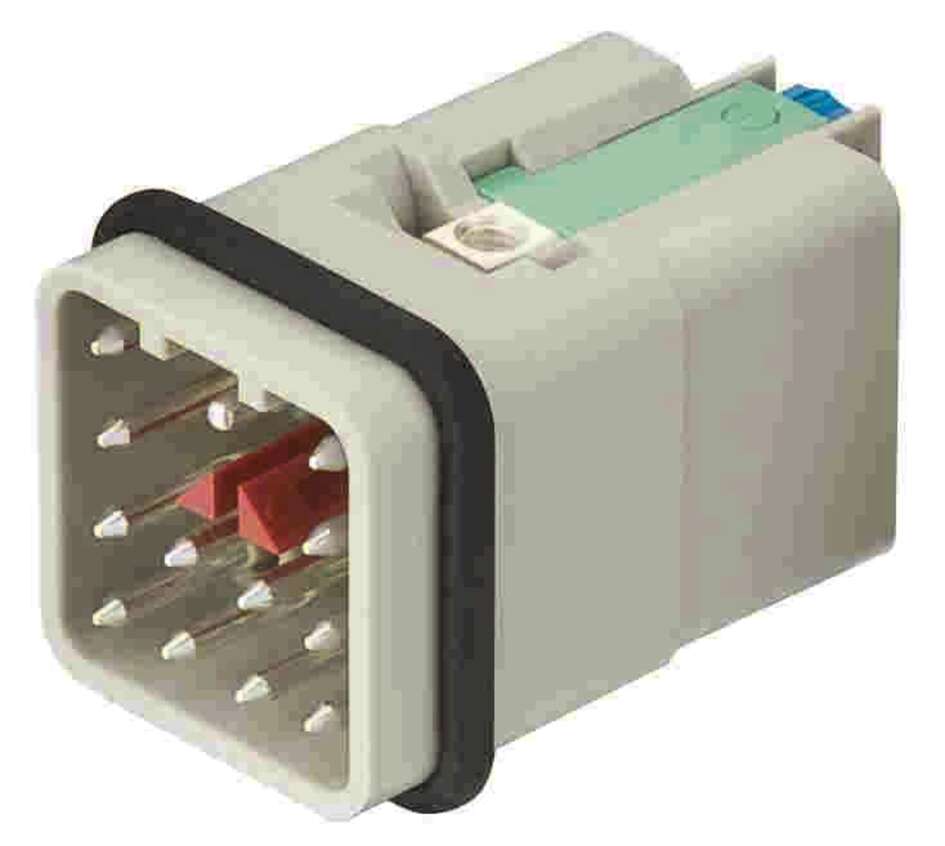

The Han Q12-M-QL 1,5mm² is a high-performance male connector insert designed for the HARTING Han® Q series with Han-Quick Lock® termination. This compact 12-contact insert with protective earth (PE) features Quick Lock termination and is optimized for industrial applications requiring reliable electrical connections with maximum contact density in space-constrained installations.

Key Features

• Series: Han® Q
• Identification: 12/0
• Gender: Male
• Termination Method: Han-Quick Lock® (QL)
• Contacts: 12 + PE (protective earth)
• Conductor Cross-Section: 0.14 - 2.5 mm²
• PE Contact Cross-Section: 0.25 - 1.5 mm²
• Rated Current: 10 A
• Rated Voltage: 400 V
• Size: 3A
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• PE Contact: Black slide design

Technical Specifications

This male insert is part of the Han® Q series, featuring the innovative Han-Quick Lock® termination system for fast and reliable assembly without additional tools. The insert accommodates conductor cross-sections from 0.14 to 2.5 mm² with a dedicated PE contact supporting 0.25 to 1.5 mm². The 12-contact configuration provides maximum contact density for complex control and automation applications while maintaining the compact 3A size. The black slide PE contact design ensures reliable protective earth connections. The Han-Quick Lock® system enables tool-free assembly, significantly reducing installation time while maintaining secure electrical connections.

Compliance & Environmental

• Industrial-grade polycarbonate construction
• Han-Quick Lock® system for tool-free assembly
• Size 3A compatibility with Han® Q series
• Rated for 10A current capacity
• 400V voltage rating
• Professional RAL 7032 finish

Applications

Ideal for industrial automation, control systems, and instrumentation applications requiring maximum contact density in compact installations. Perfect for complex control circuits, multi-channel data acquisition systems, and advanced automation applications where 12 signal connections are needed in minimal space. The Han-Quick Lock® system makes it excellent for applications requiring frequent connection and disconnection or fast assembly processes in manufacturing and process control environments.
