Harting Insert, crimp, male, size 216A, c/s 0.14 - 2.5mm²

Product Overview

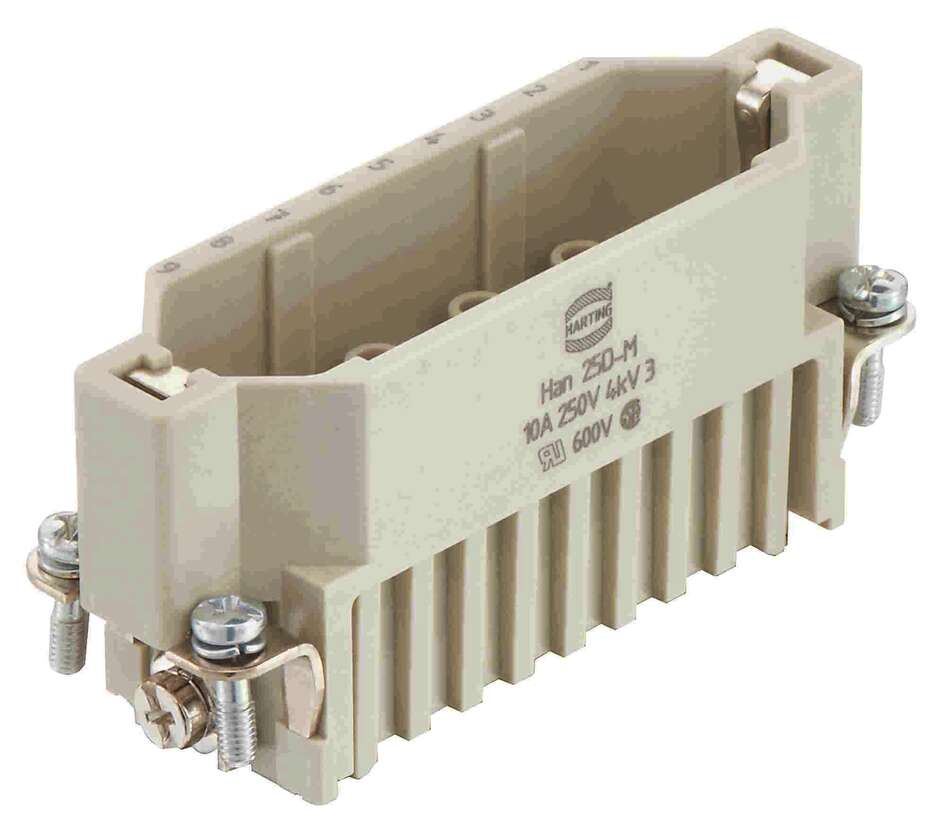

The Han D 25 Pos. M Insert Crimp is a high-density male connector insert from HARTING's Han D® series, designed for crimp termination applications requiring multiple connection points. This 25-position insert provides maximum connectivity density while maintaining reliable performance in demanding industrial environments.

Key Specifications

• Article Number: 09 21 025 3001
• Series: Han D®
• Category: Inserts
• Gender: Male insert
• Number of Positions: 25 positions
• Current Rating: 10A per contact
• Voltage Rating: 250V (600V acc. to UL/CSA)
• Conductor Cross-Section: 0.14 to 2.5 mm²
• Termination Method: Crimp termination

Technical Features

• Operating Temperature: -40°C to +125°C
• Contact Configuration: 25-position male crimp contacts
• Housing Compatibility: Han D® series hoods and housings
• Contact System: Separate crimp contacts (ordered separately)
• Wire Range: Accommodates 0.14 to 2.5 mm² conductors
• High Density: Maximum contact count for space-critical applications

Electrical Characteristics

• Rated Current: 10A per contact
• Rated Voltage: 250V
• UL Rating: 600V acc. to UL
• CSA Rating: 600V acc. to CSA
• Operating Temperature: -40°C to +125°C
• Pollution Degree: 3

Crimp Termination System

• Professional Installation: Requires crimp tool for proper termination
• Reliable Connection: Crimp technology ensures consistent electrical contact
• Contact Versatility: Compatible with various crimp contact types
• Separate Contact Order: Crimp contacts must be ordered separately
• High-Density Design: 25 contacts provide maximum connectivity in compact format

Applications & Usage This high-density male crimp insert is ideal for complex industrial applications requiring numerous connection points in a compact format. Perfect for control systems, automation equipment, and data acquisition systems where space is at a premium but high contact count is essential. The crimp termination method provides excellent electrical and mechanical performance for mission-critical applications.

Compatibility

• Series Compatibility: Han D® series hoods and housings
• Contact Requirement: Crimp contacts ordered separately
• Wire Types: Compatible with various conductor types within specified cross-section range
• Mating Partner: Works with Han D 25-position female inserts
• Housing Size: Requires appropriate size housing for 25-contact configuration

Certifications & Compliance

• Material Flammability: UL 94 V-0 class
• UL Listed: 600V rating
• CSA Certified: CSA-C22.2 No. 182.3 ECBT8.E235076
• Temperature Rating: -40°C to +125°C operating range
