Harting Insert, crimp, female without contacts, 16A

Product Overview

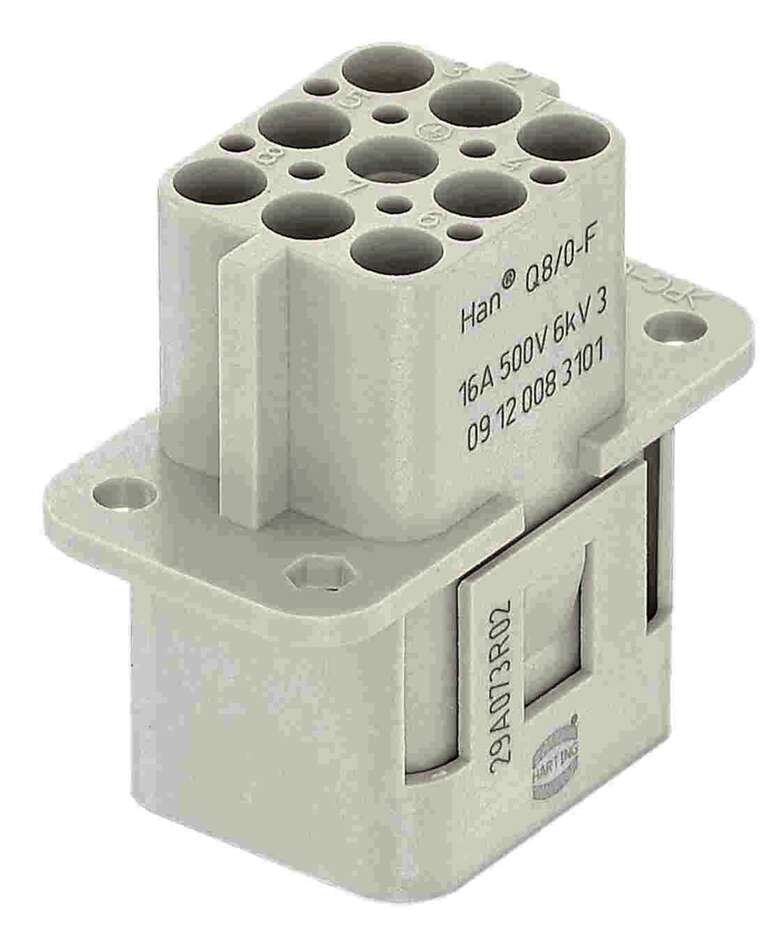

The Han Q 8/0 BU-C is a high-performance female connector insert designed for the HARTING Han® Q series with crimp termination. This compact 8-contact insert with protective earth (PE) features crimp contact termination and is optimized for industrial applications requiring reliable female electrical connections with multiple signal paths and superior mechanical retention.

Key Features

• Series: Han® Q
• Identification: 8/0
• Gender: Female (BU)
• Termination Method: Crimp (C)
• Contacts: 8 + PE (protective earth)
• Conductor Cross-Section: 0.14 - 4 mm²
• Rated Current: 16 A
• Rated Voltage (UL): 600 V
• Rated Voltage (CSA): 600 V
• Operating Temperature: -40°C to +125°C
• Size: Han-Compact®
• Flammability Rating: UL 94 V-0
• Certification: CSA-C22.2 No. 182.3

Technical Specifications

This female insert is part of the Han® Q series, featuring crimp termination for secure and reliable electrical connections. The insert accommodates conductor cross-sections from 0.14 to 4 mm² and is rated for 16A at 600V (UL and CSA). The 8-contact configuration provides multiple signal paths for complex control and automation applications. The crimp connection method provides superior mechanical retention and electrical performance for long-term reliability. Operating reliably across a wide temperature range from -40°C to +125°C, this insert meets UL 94 V-0 flammability standards and CSA certifications. Note: Crimp contacts must be ordered separately.

Compliance & Environmental

• UL 94 V-0 flammability rating
• CSA-C22.2 No. 182.3 certified
• UL and CSA voltage ratings: 600V
• Wide operating temperature range: -40°C to +125°C
• Industrial-grade construction
• Compatible with plastic and metal housings

Applications

Ideal for industrial automation, control systems, and instrumentation applications requiring multiple female signal connections with superior mechanical retention. Perfect for control panels, measurement equipment, sensor networks, and automation systems where space optimization and reliable multi-signal female connectivity are essential. The 8-contact configuration makes it suitable for complex control circuits, data acquisition systems, and multi-channel signal processing applications requiring crimp termination reliability.
