Harting Insert, crimp, female, size 24B, c/s 0.14 - 4mm²

Product Overview

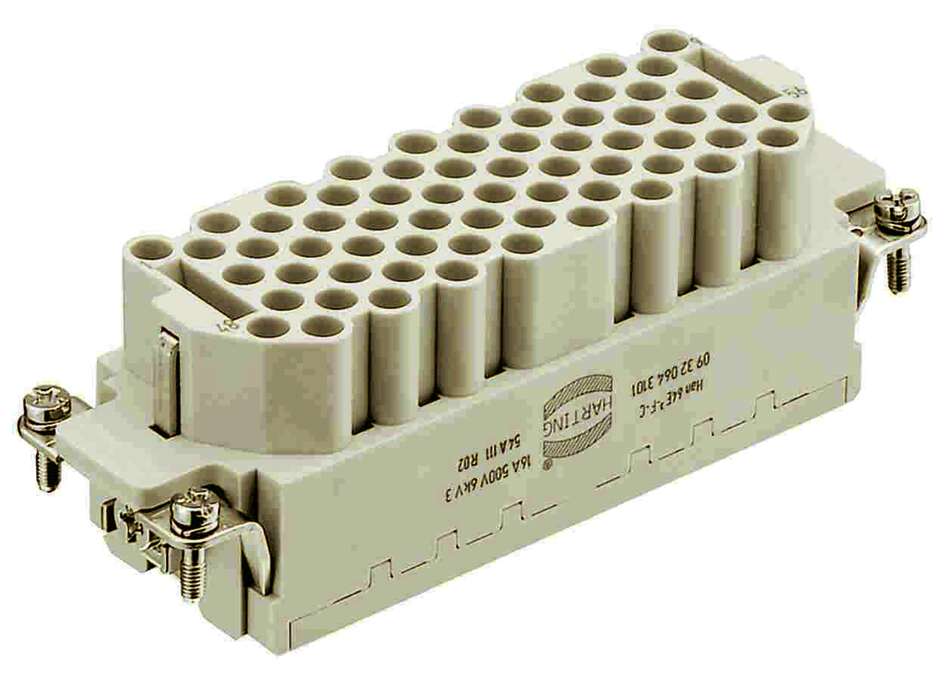

The Han 64 EEE-F-C (SKU: 09320643101) is a ultra-high-density rectangular socket insert designed for the most demanding industrial connectivity applications. Part of the Han® EEE series, this female crimp insert delivers reliable 16A current rating per contact at 500V and accommodates 64+PE contacts, providing ultimate receiving connectivity solutions for complex industrial automation and control systems requiring maximum pin count configurations.

Key Features:

• 64-Position Configuration: 64 contacts plus PE (protective earth) for ultimate connectivity
• Female Socket Insert: Rectangular socket design for receiving male contacts
• Crimp Termination: Professional crimp connection for precision wire terminations
• High Voltage Rating: 500V operating voltage for demanding applications
• 16A Current Rating: Reliable 16A per contact capacity
• Size 24B Compatibility: Large housing for ultra-high-density connection requirements
• Ultra-High Density: Maximum contact density in industrial receiving applications

Technical Specifications:

• Article Number: 09 32 064 3101
• Category: Inserts
• Series: Han® EEE
• Gender: Female (socket)
• Number of Contacts: 64 + PE (65 total positions)
• Termination Method: Crimp termination
• Current Rating: 16A per contact
• Voltage Rating: 500V
• Wire Cross-Section: 0.14 - 4mm²
• AWG Range: AWG 26 - AWG 12
• Size: 24B
• Insert Material: Polycarbonate (PC)

Compliance & Certifications:

• Operating Temperature: -40°C to +125°C
• Rated Voltage: 500V
• Material Flammability: UL 94 V-0 rating
• Standards: CSA-C22.2 No. 182.3 ECBT8.E235076
• Assembly Requirements: Crimp contacts must be ordered separately
• Wire Range: Accommodates wide range from AWG 26 to AWG 12
• Industrial Grade: Built for demanding industrial environments

Applications:

Essential for ultra-high-density industrial automation systems, complex control panels, advanced process control equipment, large-scale machinery interconnections, and maximum-density signal receiving applications. Ideal for applications requiring ultimate receiving connectivity in 24B housing configurations where reliable crimp terminations, 500V capability, and maximum pin count density are absolutely critical for system performance.

Compatibility:

• Housing Compatibility: Designed for Han® 24B series hoods and housings
• Mating Requirements: Requires corresponding Han EEE 64-position male insert (09320643001) for complete assembly
• Crimp Contacts: Contacts must be ordered separately - compatible with Han® EEE crimp contacts
• Wire Specifications: Accommodates 0.14-4mm² / AWG 26-12 wire cross-sections
• System Integration: Compatible with standard Han® connector system
• Installation: Professional crimping tools and assembly required for optimal performance

Installation & Assembly:

• Contact Installation: Crimp contacts sold separately and must be installed in insert
• Crimp Tools: Professional crimping tools required for contact installation
• Wire Preparation: Precise wire stripping essential for reliable connections
• Quality Control: Professional assembly mandatory for ultra-high-density applications
• Assembly Requirements: Two inserts (male and female) required for complete connector
• Connection Security: Should not be mated or unmated under electrical load
• Polarization: Essential for complex arrangements to prevent wrong connections
• Ultra-High Density: 64-position receiving configuration requires expert wire management
• Receiving Design: Female socket design provides secure receiving connections for male pins
