Harting Insert, crimp, female, size 10B, c/s 0.14 - 2.5mm²

Product Overview

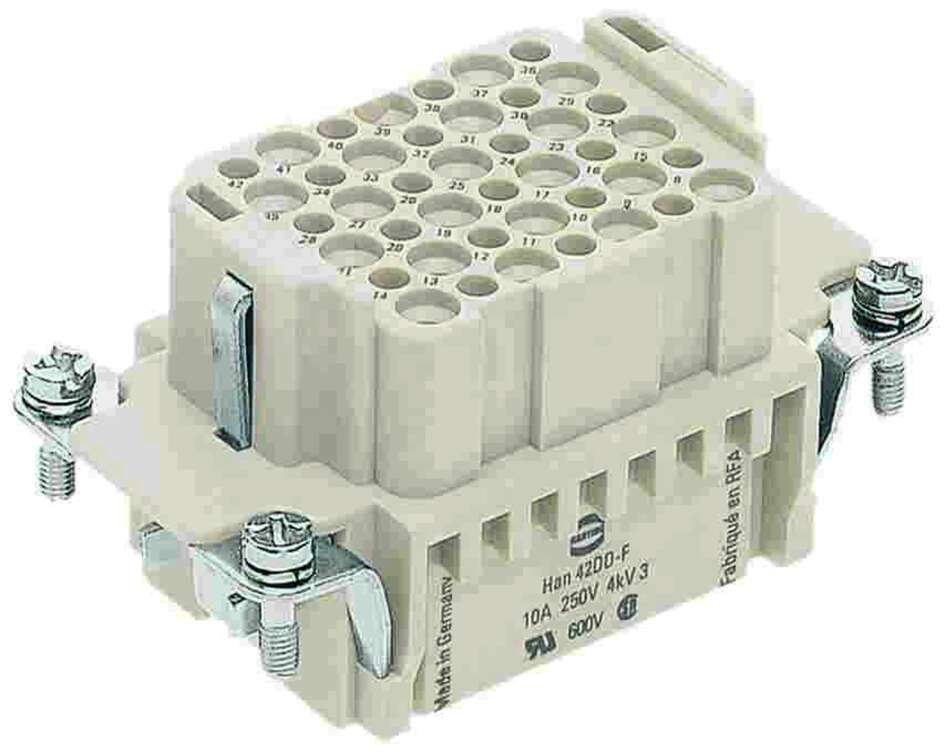

The Han 42DD-SMC-FI-CRT (SKU: 09160423101) is a female insert from HARTING's Han DD® series, designed for crimp termination applications. This high-density rectangular insert features 42 contacts plus PE (protective earth) with a rated current of 10A and accommodates conductor cross-sections from 0.14 to 2.5 mm². The insert is manufactured in RAL 7032 (pebble grey) color and is designed for Size 10B applications, making it ideal for automation and robotics projects requiring high pin count connections.

Key Features & Specifications

• Series: Han DD®
• Category: Inserts
• Gender: Female
• Termination Method: Crimp termination
• Number of Contacts: 42 + PE
• Rated Current: 10A
• Conductor Cross-Section: 0.14 ... 2.5 mm²
• Wire Size: 14-26 AWG
• Size: 10B
• Color: RAL 7032 (pebble grey)
• Temperature Range: -40°C to +125°C
• Rated Voltage (UL): 600V
• Rated Voltage (CSA): 600V
• Rated Voltage: 250V
• Rated Impulse Voltage: 4kV
• Pollution Degree: III

Applications & Benefits

HARTING Han® Industrial Connectors are suited for the harshest requirements in industrial environments and are used in all applications requiring a safe and removable electrical connection. This high-density female connector insert is particularly well-suited for automation and robotics projects where space optimization and multiple connections are essential.

The field of application for HARTING connectors extends from protected electrical areas in control cabinets to outdoor applications. The Han® Industrial product line incorporates small connectors capable of a few amps up to large multi-way high power connections, enabling sensitive signals of a few milli-volts used in Gigabit transmissions, up to 600 Amps or 5000 Volts for high power applications.

Technical Characteristics

This high-density female crimp insert offers:

• High-quality crimp termination for reliable connections
• Industrial-grade construction for demanding environments
• Compatible with HARTING's modular connector system
• Designed for multiple mating cycles in industrial applications
• High pin count design optimized for space-critical applications
• Compliant with IEC60664 and IEC61984 standards
• Note: Crimp contacts must be ordered separately

Compliance & Environmental

• RoHS compliant
• ELV status compliant
• China RoHS compliant
• Material flammability class acc. to UL 94 V-0
• REACH Annex XVII substances: Not contained
• CSA-C22.2 No. 182.3 ECBT8.E235076 certified
• IEC60664 and IEC61984 compliant
